Sucker rod hanger BD oil pipe

Product Details

Product Description

Product Description

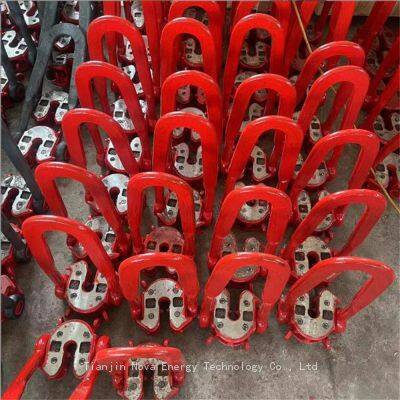

Sucker rod hanger BD oil pipe
Y-shaped hoist is a tool used to lift pipes such as drill rods, tubing, and casing, and is an indispensable part of drilling engineering. It is suspended inside the lifting rings on both sides of the lifting system hook, used for lifting or lowering drilling tools and tubing in the wellbore. Hangers are classified into different types based on the specifications of the drill string being hoisted, such as casing hangers, tubing hangers, drill pipe hangers, and sucker rod hangers.
The sucker rod hoist is a specialized tool used in oil drilling and production to lift or lower the pipe string, especially in well repair operations, where the sucker rod hoist plays an important role. It is suitable for suspending specific specifications of sucker rods for lifting or lowering operations, ensuring the safe and efficient use of sucker rods during oil drilling and production processes.
Technical specifications:
CDQ (S) 19/(maximum load): The hoist aperture is 19mm, suitable for 1/2-5/8 specification sucker rods, with a maximum load of 15 tons.
CDQ (S) 23/(maximum load): The hole diameter of the elevator is 23mm, suitable for sucker rods with specifications ≥ 5/8-3/4.
CDQ (S) 26/(maximum load): The hole diameter of the elevator is 26mm, suitable for sucker rods with specifications ≥ 3/4-7/8.
CDQ (S) 30/(maximum load): The hole diameter of the elevator is 30mm, suitable for sucker rods with specifications>7/8-1.
CDQ (S) 33/(maximum load): The hole diameter of the elevator is 33mm, suitable for 1 ⅛ size sucker rod.
CDQ (S) 36/(maximum load): The hole diameter of the elevator is 36mm, suitable for 1 ¼ specification sucker rods.
BD hollow sucker rod hanger, suitable for sucker rods ranging from 28 to 42, with working loads of 25 tons and 40 tons.
