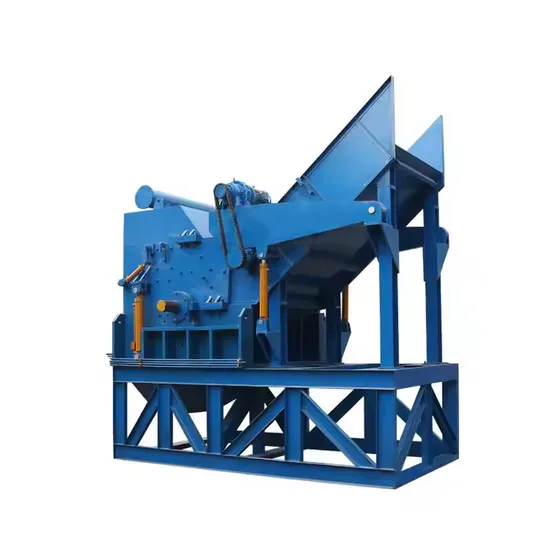

Automatic Hydraulic Recycling Aluminum Crushing Car Steel Crusher Iron Waste Metal Crusher Scrap Metal Shredder

Product Description

Product Description

Model	Host	Motor power	Speed	Capacity(kg/h)	Dimension(mm)	Weight(kg)
600	18.5-22	18.5	2100	600-800	2000*700*2000	1.5
800	30-37	30	1600	800-1200	2200*900*2200	3.7
1000	45-55	75	1250	1200-1500	3800*1400*3000	7.6
1300	90-150	90	860	4000-5000	4000*1500*2800	11.5
1600	110-180	110	750	6000-10000	4800*2000*3200	16.6
2000	220-320	220	650	8000-12000	5000*2200*3400	28.6

Our metal crusher has the advantage of high capacity, low energy cost, high efficiency, average output size, low noise, no pollution, easy handling, and convenient maintenance these properties.
Working Principle Of Crusher The whole production line of scrap crusher consists of feeding conveyor, main engine, vibration feeder, discharging conveyor, magnetic separator, iron conveyor, impurity conveyor, dust collector and PLC control cabinet. The crushed materials from scrap hammer shredder are separated from non-ferrous and non-ferrous metals by vibration feeder, belt conveyor and magnetic separation system, and sent out to stack by their respective conveyors. Non-ferrous metals and non-metallic materials in the conveyor will be searched by magnetic separation equipment again, and free iron metals will be sorted out, so as to improve the recovery rate of iron metals. At the same time, non-ferrous metals can be sorted by eddy current separator, which can improve the recovery efficiency. The whole broken line is controlled by PLC, which can realize computer control and manual operation. The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc. Product Display
Materials Suitable For Crushing The waste aluminum crusher is mainly used for crushing scrap copper and aluminum, increasing its bulk density for transportation and recycling.
This waste metal aluminum crusher is widely used in shredding scrap aluminum alloy, scrap radiator, broken bridge aluminum, scrap engine, water tank, copper wire,and other scrap metal materials.
Our Advantages 1. Super high crushing efficiencyHydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.2. Perfect finished granulesThe unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets andimprove the grade of crushing materials.3. Stable operation capabilityWhen the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.4. Intelligent Control SystemPLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Our Services
FAQ 1.What is your minimum order and payment method?
We can accept sample orders for trial orders. T/T 100% for less than $10,000,and T/T 50% can be used for more than $10,000.
2. ls there a warranty?
Of course. all our branded products have a 12-month warranty period. we provide 24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us.
3. What certificates are approved for your product?
We have CE, FCC, ISO 9001 and so on.
4. Can you customize it according to my needs?
You can send me inquiries according to your needs. we can customize them with technical engineers.
5. ls your price the lowest? Do you mind the quality?
The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price to work well?
6. ls the product 100% assembled?
Yes, all the products are 100% assembled.
7. After-sales service
- all products are subject to strict factory quality inspection before packaging.
- all the products are packed in our factory, and the second package is delivered by express delivery before shipment.
- if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
8. Thank you for your trust and cooperation!
