Limno2 Battery Cp124920 Ultra Thin Battery 160mAh 3.0V Battery

Product Description

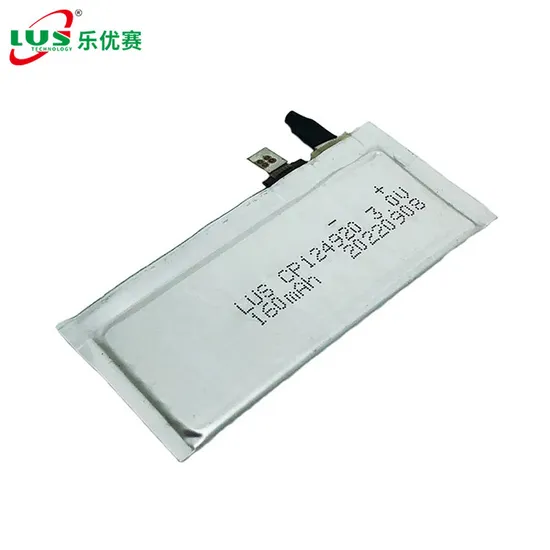

Soft Packaging Limno2 Battery Cp124920 Ultra Thin Battery 160mAh 3.0V for Safety Helmet
soft packaging limno2 battery CP124920 Ultra Thin Battery 160mAh 3.0V For safety helmet can be abendable
CP124920 3.0V 165mAh Li-MnO2 Non-rechargeable Thin Cell Thin Cell battery chemistry has emerged as an enabling technology, allowing IoT and wearable devices designers to realise the next generation of connected devices. Thin Cell utilises high energy Lithium Manganese Dioxide (Li-MnO2) chemistry, efficiently packaged in a pouch cell format, allowing cells to be manufactured as thin as 0.4mm (0.016 inches). This innovative technology allows devices to be made thinner & lighter, opening up new possibilities for embedded & wearable devices. Description

Type	Disposable battery
Name	Ultra thin cell
Model number	CP124920
Voltage	3.0V
Capacity	160mah
Operating temperature	-40 ----70
Shelf life	10 years
Terminals	Pins/Wires/can be customized
Samples	Free
OEM and ODM	Welcome

Thin cell list

Model	Maximum Appearance dimensions (mm)	Weight (g)	Rated voltage (v)	Rated Capacity (mAh)	Standard Discharge Current (mA)	Max.Current (mA)
						Continuous	Pulse
CP042922	0.45×29×22	0.4	3.0	15	0.5	10	20
CP042345	0.45×23×45	0.8	3.0	30	0.5	20	35
CP104848	1.2×49×49	3.8	3.0	350	1.0	50	100
CP142828	1.5×29×29	1.5	3.0	100	1.0	15	30
CP153030	1.6×31×31	1.8	3.0	120	1.0	50	100
CP155050	1.6×51×51	6.0	3.0	650	5.0	500	1000
CP2012120	2.0×12×125	5.5	3.0	400	1.0	100	200
CP202850	2.2×28.5×50	3.6	3.0	380	1.0	100	200
CP224035	2.4×41×36	4.8	3.0	580	1.0	150	300
CP223045	2.4×31×46	4.2	3.0	480	1.0	150	300
CP224147	2.3×45×49	7.0	3.0	800	1.0	500	1200
CP265045	2.8×51×46	9.0	3.0	1200	1.0	300	500
CP264558	2.8×46×59	9.5	3.0	1250	5.0	300	500
CP305050	3.2×51×51	12.5	3.0	1600	5.0	600	1000
CP401720	4.2×18×21	2.0	3.0	220	1.0	50	120
CP401922	4.2×20×23	2.6	3.0	300	1.0	100	150
CP405050	4.2×51×51	17.0	3.0	2400	5.0	1000	1500
CP451728	4.5×18×29	3.2	3.0	380	1.0	120	200
CP502525	5.2×26×26	4.5	3.0	600	5.0	200	300
CP502440	5.2×25×42	8.5	3.0	1200	1.0	400	800
CP503742	5.2×38×43	13.0	3.0	1900	5.0	800	1200
CP504644	5.2×47×45	17.0	3.0	2500	5.0	1200	2000
CP505050	5.2×51×51	22.0	3.0	3000	10.0	1500	2000
CP602026	6.2×21×27	4.5	3.0	550	1.0	200	300
CP701725	7.2×18×26	4.5	3.0	520	1.0	150	300
CP783970	7.8×39×70	36.5	3.0	5500	10.0	3000	5000
CP7839109	7.8×39×109	63.0	3.0	10000	10.0	3000	5000
CP802060	8.0×20×60	15.5	3.0	2100	10.0	2000	3000
CP952434	9.7×25×35	11.5	3.0	1700	5.0	500	800
CP1003742	10.2×38×43	26.0	3.0	3900	5.0	1200	2000

Application Field:

RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards

b. Various smart meters: smart electric meters, water meters, heat meters and gas meters

c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies

d. Radio alarm equipment/sensors: smoke alarms and temperature monitors

e. Remote monitoring systems: positioning devices and marine telemetry systems

f. Automotive electronics: tire pressure monitoring systems

g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.

Quality control
Thin cell Feature

Thin Cell Advantage We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC anapplications.
High quanlity with fast lead time.
Welcome for any customized.
Thanks.

FAQ 1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.

2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item

3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.

4.What is sample Date?
Re: we will send out within 1 week after details confirmation.

5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days

6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.

---
