Precision Glue Tank Edge Banding Machine for Cabinet Doors

Product Description

Technical Paremeters

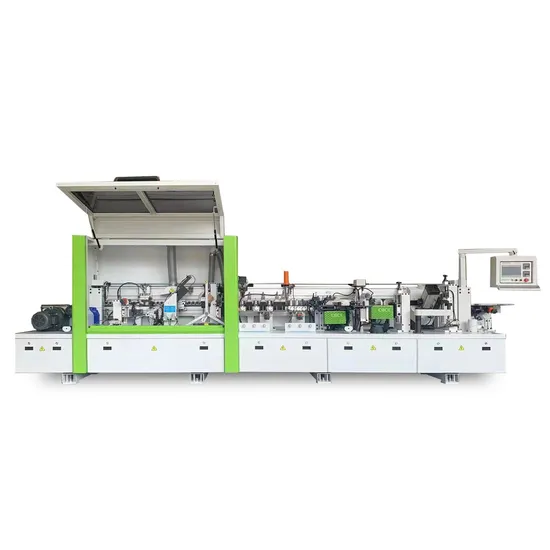

ZD450X Automatic high speed edge banding machine
Fully automatic Support customizatio
Excellent quality One-year warranty

Model	ZD450X
Thickness of banding	0.4-3mm
Width of banding	10-60mm
Thickness of workpiece	10-60mm
Total power	16.5kw
Electric lifting	0.37kw
Feeding speed	12-23m/min
Air pressure	0.6~0.8Mpa
Workpiece length	>=150mm
N.W.	2600kgs
Overall dimension	6560*900*1950mm

Product Details
Screen Control Panel:
Touch screen is made from Delta(Taiwan) brand PLC control system and operation panel.
Feed training wheel
Gluing:
Nonstick material glue pot,easy to clean.Board preheating part,better gluing effect.
End trimming:
Auxiliary pinch roller for narrow boards.Stable edge banding even for 4CM width panel.Strong end cutting unit makes sure the well process.

Fine/Rough trimming:
Fine/rough trimming mechanism,full automatic adjustment.,adopts automatic tracking and high frequency motor to ensure the trimming places smoothly.
Corner Rounding:
Corner Rounding mechanism with two high precision tracking motor to make sure high tracking speed and high trimming speed.
Scrapping:
Scrapping process with dust collecting pipe makes sure the clean final panel.
Buffing:
The polishing roller is made of special material,which is durable and has better effect.
Solve the problem that the edge banding of the workpiece processed by the edge banding machine is not firmly bonded due to the low temperature in the factory space in winter.
Application
Wide range of applications
More scope of application and wider application
Meet your different needs
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Replying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as:polishing machines,panel machine,press machine etc,which have been exported to lots of countries and regions.We have establish 7 complete system to guarantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kind of machines.
Certifications

Exhibitions
Our customer feedback

FAQ

---
