Pet Bottle Label Peeling Machinery

Product Description

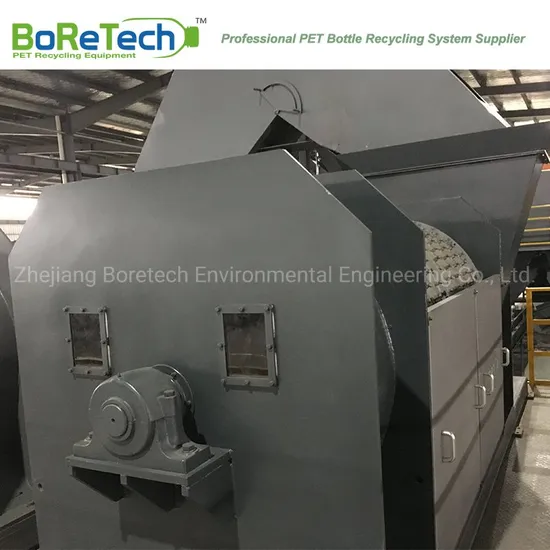

PET bottle label peeling machinery
In Asia, most of labels made from PVC heat-shrinkage film which cannot be removed through bottle prewashing; this is another major problem in PET recycling industry. BoReTech patented label separation machine completely solved this problem. Firstly, label scrapper will tear the labels, so that the labels no longer attached to bottles, and then,the labels will completely separated by adjustable wind-force and gravity difference.
BoReTech supplys two types of PVC label separation machines.One type is consist of label scrapper and label blower.Another one is compact device which has two functions in one and with less sapce occupation.
Patented label scrapping blade and bolt has the feature of long service life, high efficiency of label separation rate and low bottle damage. The general separation rate is over 95% and bottle-breaking rate within 5%; and service life can reaches up to 10000T.
Specially designed machine structure can minimize the time of changing blades, making sure the smooth running of the entire production line.

Model	Capacity (kg/h)	Power (kW)	Dimensions (mm)	Label Separation Rate (%)	Bottle Broken Rate (%)
TB600	600	11	3200*1980*1895	>95	<=5
TB800	3000	30	3300*1462*2258	>95	<=5
WTB800A	3000	30	3935*1560*1935	>95	<=5
TB1000	4000	30	4550*1850*2075	>95	<=5
STB800	3000	30	4800*1740*1975	>95	<=5

Packing&Transport
BoReTech Brief
BoReTech is a resource environmental enterprise which integrates manufacturing,engineering and equipment supply. BoReTech is devoted to develop large input capacity of smart PET bottle recycling system with full automation and intelligence. Meanwhile, BoReTech as resources and technology integrator of recycled polyester industrial chain supply turnkey service of PET bottle washing line,bottle-to-fiber and bottle-to-bottle engineering.
BoReTech is the only PET bottle washing line for food-grade B-To-B project in Asia,and more than 170 PET bottle washing lines are running all over the world.

---
