Solar Bore Water Pump Price, Solar Powered Borehole Well Water Pump Price

Product Description

Solar powered water pumps
Warranty Solar water pump: 3 years
MPPT controller: 3years
Solar panels: 25 years

You can buy solar panels from us or just buy solar water pump and controller .
If the controller and motor damaged within 3 years, we will send you a new controller or motor for replacement, shipping free.
If the impeller is damaged within 3 years, we will send you spare impellers for replacement, shipping free.

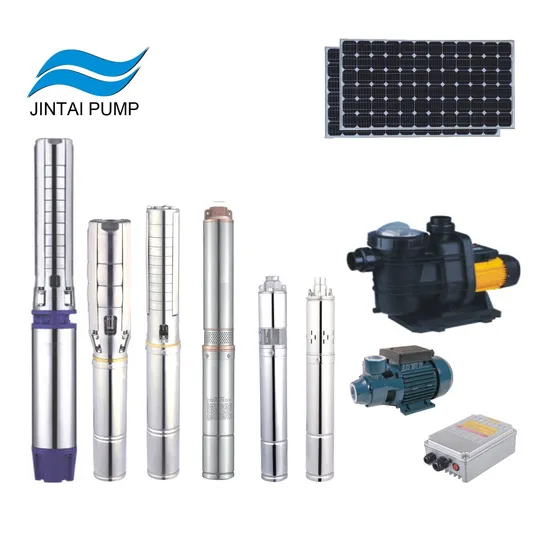

Finished Products Solar Water Pump System Complete Set:

1. Solar pump with 3m cable, longer cable is available if required

2. Controller

3. Water level sensor or float switch:10meter cable, longer cable is available

4. Cable for solar panel: 6m, longer cable is available

5. Cable connector

6. Solar panels are option

7. Rope to hang the pump

8. Installation Manual

Buyer Feedback
Application
Our solar powered water pumps are mainly used in:
1. Irrigation of agricuture.
2. Drinking water and living water. 3. Remote areas, farming
4. Fountains. 5. Swimming pool circulation and filteration. Material&Technology MATERIAL OF PARTS:
Outlet:brass or stainless steel
Pump body: stainless steel
Motor body:stainless steel
Screw:stainless steel
Impeller: Stainless steel or Plastic.PPO
Bearing:NSK
ADVANCED TECHNOLOGY:
1.Application innovation
Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,
non-sensor motor. 2.Technics innovation
Adopt double plastic package for rotor and stator,
motor insulation≥300MΩ,
the motor security was much improved. 3.Structure innovation
Oil filling,convenient installation and environmental protection. Performance Data:
Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.

1. Where will the pump be used ?
2. How much water discharge ( liters or gallon or m3) required per day or per hour? 3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?

TYPE	VOLTAGE	RATE POWER	MAX FLOW	MAX HEAD	OUTLET SIZE	DIAMETER OF PUMP
	(v)	(w)	(m3/h)	m	(in)	(mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.3-50	24	120	1.3	50	3/4"	76
JS3-1.8-60	24	180	1.8	60	3/4"	76
JS3-1.8-80	24	210	1.8	80	3/4"	76
JS3-1.8-100	24	270	1.8	100	3/4"	76
JS3-2.1-100	48	450	2.1	100	3/4"	76
JS3-2.1-120	48	540	2.1	120	3/4"	76
JC3-2.8-14	24	140	2.8	14	1"	76
JC3-2.5-28	36	260	2.5	28	1"	76
JC3-3.6-33	36	320	3.6	33	1"	76
JC3-2.5-39	36	400	2.5	39	1"	76
JC3-4.2-38	36	440	4.2	38	1"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JC3-2.8-62	48	600	2.8	62	1"	76
JC3-3.2-85	48	750	3.2	85	1"	76
JC3-3.2-115	72	1000	3.2	115	1"	76
JS4-3.0-60	36	450	3	60	1"	100
JS4-2.5-80	48	500	2.5	80	1"	100
JS4-3.6-80	48	750	3.6	80	1"	100
JS4-4.0-100	72	1000	4	100	1"	100
JS4-3.2-120	72	1000	3.2	120	1"	100
JS4-2.5-140	72	1000	2.5	140	1"	100
JC4-5.5-32	36	360	5.5	32	1.25"	100
JC4-5.8-43	48	500	5.8	43	1.25"	100
JC4-3.1-66	48	500	3.1	66	1.25"	100
JC4-4.0-60	48	720	4	60	1.25"	100
JC4-6.8-60	72	1000	6.8	60	1.25"	100
JC4-6.0-88	72	1000	6	88	1.25"	100
JC4-8.0-55	72	1000	8	55	1.5"	100
JC4-10.0-45	72	1000	10	45	2"	100
JC4-14.0-33	72	1000	14	33	2"	100
JCS4-5.0-28	24	250	5	28	1.25"	100
JCS4-6.0-40	48	500	6	40	1.25"	100
JCS4-6.0-52	48	600	6	52	1.25"	100
JCS4-7.5-34	48	750	7.5	34	1.25"	100
JCS4-5.5-60	48	750	5.5	60	1.25"	100
JCS4-10-30	48	750	10	30	1.5"	100
JCS4-5.0-128	72	1200	5	128	1.25"	100
JCS4-5.5-90	72	1000	5.5	90	1.25"	100
JCS4-6.7-88	72	1000	6.7	88	1.25"	100
JCS4-7.5-70	72	1000	7.5	70	1.25"	100
JCS4-6.5-98	72	1200	6.5	98	1.25"	100
JCS4-10-45	72	1000	10	45	1.5"	100
JCS4-15-21	72	1000	15	21	2"	100
JCS4-10-57	72	1200	10	57	1.5"	100
JCS4-15-28	72	1200	15	28	2"	100
JCS4-23-21	72	1200	23	21	2"	100
JCS4-28-13	72	1200	28	13	2"	100
JCS4-22-32	220	1500	22	32	2"	100
JCS4-25-40	220	1800	25	40	2"	100
JCS4-25-54	288	2200	25	54	2"	100
JCS4-25-72	288	3000	25	72	2"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-30-14	72	1200	30	14	3"	150
JCS6-30-21	216	1500	30	21	3"	150
JCS6-30-28	216	1800	30	28	3"	150
JCS6-30-43	288V	2200	30	43	3"	150
JCS6-30-54	288V	3000	30	54	3"	150
JCS6-30-65	288V	4000	30	65	3"	150
JCS6-50-7	72	1200	50	7	4"	150
JCS6-50-14	216	1800	50	14	4"	150
JCS6-50-22	288V	2200	50	22	4"	150
JCS6-50-33	288V	3000	50	33	4"	150
JCS6-50-45	288V	4000	50	45	4"	150
JCS6-70-11	288V	2200	70	11	4"	150
JCS6-70-23	288V	3000	70	23	4"	150
JCS6-70-33	288V	4000	70	33	4"	150
JQB-2.0-25	24	120	2	25	1"*1"	SURFACE PUMP
JQB-2.2-35	36	210	2.2	35	1"*1"	SURFACE PUMP
JETS-3.5-45	48	450	3.5	45	1"*1"	SURFACE PUMP
JETS-4.2-60	72	750	4.2	60	1"*1"	SURFACE PUMP
JCPS-6.6-34	72	750	6.6	34	1.25*1"	SURFACE PUMP
JCM-5.0-55	48	500	5	55	1"	SURFACE PUMP
JCM-5.0-80	48	750	5	80	1"	SURFACE PUMP
JSDP-7.0-9	48	400	7	9	1.5"	SEWAGE PUMP
JSDP-8.0-11	48	500	8	11	1.5"	SEWAGE PUMP

---
