Jps-320fq-Tr Automatic Turret Rewinder Slitter/ Slitting Rewinding Machine for Self-Adhesive Thermal Paper Label Film Sticker Roll

Product Description

JPS-320FQ-TR Automatic Turret Rewinder Slitter/ Slitting Rewinding Machine for Self-Adhesive Thermal Paper Label Film Sticker Roll
Technical Parameters:

Model	JPS-320FQ-TR
Slitting speed	120m-150m/min
Max paper width	320mm
Max Unwind diameter	500mm
Max rewind diameter	220mm
Dimension	0.9x 0.9x1.15m (LxWxH)
Machine weight	About 420kg

Feature :
The slitter is the corollary equipment of automatic die cutting machine, which is suitable for slitting narrow paper web.
It has automatic meter count and number count, quantity and length preset and decelerate till stopping functions.
Auto Magnetic powder control for unwinding and rewinding
Photoelectric eyes rectification for unwinding, synchronous belt to conveyor in internal structure
Distinctive machine design will improve working efficiency and reduce operation labor intensity , which is the optimal choice for narrow material slitting.
The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Application:
Slitting for label,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Charatertistics :
1.Turret rewinder is the advanced technology, it is higher efficiency than traditional style .
2. It is easy to operate when seat , which will reduce labor intensity
3. The machine with one unwinding shaft and two turret rewinding shafts
4. It is suitable to rewind small roll
5. This machine is applicable to slit the narrow scope paper.
6. It can automatically meter, set length, stop, winding is controlled by photoelectric eyes.
7. Compact structure, fast speed, high efficiency, accurate slitting, easy and steady operation.
8. Operation by seat , which is easier than traditional style
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

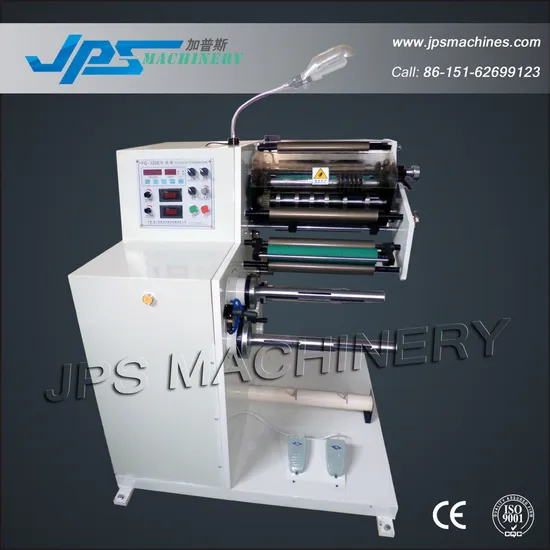

JPS-320FQ-TR Machine Version
