China Horizontal Manual Metal Lathe Machine (GH-1440A)

US$2,500.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.

GH-1440A

Guide Rail

Horizontal Guide Rail

Tool Holder

4 Position Toolpost

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Name

China Horizontal Manual Metal Lathe Machine (Gh-14

Model

Gh-1440A

Swing Over Bed

356mm

Spindle Bore

38mm

Distance Between Column

1000mm

Motor Power

1.5/2.4kw(3HP)

Packing Size

2020X900X1560mm

Weight

880

Bed Width

206mm

Spindle Speed

45-1800rpm

Transport Package

Wood Case

Specification

CE, ISO9001

Trademark

unitech

Origin

China

HS Code

84581900

Production Capacity

100sets/Month

Product Description

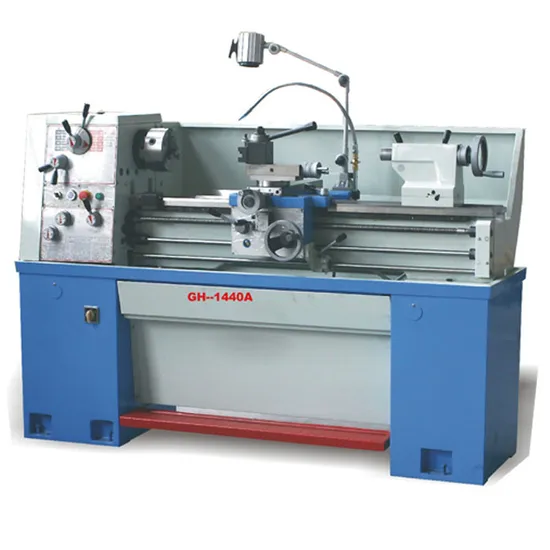

China Horizontal manual metal Lathe Machine (GH-1440A)
Features:
Precision ground and supersonic frequency hardened bed ways.
The lathe machine spindle is supported with precision roller bearing;
Headstock gears are made of high quality steel, ground and hardened;
Removable gap is provided for larger diameter work;
Easy operating gear box has various feeds and thread cutting function
Specifications:

Model		GH1440A
Max.Swing.over bed	mm	Φ356(14')
Max.Swing.over cross slide	mm	Φ220(8-5/8')
Max.Swing.over gap	mm	Φ506(20')
Bed width	mm	206(8')
Max.Distance between centers	mm	1000(40')
Taper of spindle bore		MT#5
Diameter of spindle bore	mm	Φ38(1-1/2')
Steps of spindle speeds		16steps
Range of spindle speeds	r/min	45-1800rpm
Spindle nose		D-4
Metric thread range	mm	0.45-7.5(22kinds)
Inch screw thread range	TPI	4-112(40kinds)
Range of longitudinal feeds	mm	0.03-0.688(0.0011-0.0271'in/rev)
Range of cross feeds	mm	0.015-0.220(0.0003-0.01'in/rev)
Diameter of leadscrew	mm	Φ22(7/8')
Pitch of leadscrew	mm	4(8T.P.I)
Travel of tailstock quill	mm	120(4-3/4')
Diameter of tailstock quill	mm	Φ45(1-25/32')
Taper of tailstock quill		MT#3
Main motor power	Kw	1.5/2.4
Packing size of lathe(LxWxH)	mm	1900 x760 x1460
Net Weight/Gross Weight	Kg	960/875

Standard accessories:

3-Jaw chuck

4-Jaw chuck

Splash guard

Work light

Coolant system

Foot brake

Face plate

Steady rest

Follow rest

Operation manual

Optional accessories:

DRO

Qucik change tool post

What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
