Small Investment High Return 1.5mm 2mm 3mm Cat Litter Machine Cat Litter Pellet Machine Manufacturer

Product Description

Small investment High return 1.5mm 2mm 3mm cat litter machine cat litter pellet machine manufacturer
TECHNICAL PARAMETER

Model	Constituent part	Power	Pellet size	Capacity	Weight	Dimension
		(KW)	(mm)	(T/H)	(KG)	(mm)
MZLH320	Screw Feeder	1.1KW	4-12mm	0.3-0.4T/H	1500KG	2200*900*1300
	Force Feeder	0.55KW
	Pellet machine	37KW
MZLH350	Screw Feeder	1.1KW	4-12mm	0.5-0.6T/H	2200KG	2500*1100*1600
	Force Feeder	0.55KW
	Pellet machine	55KW
MZLH420	Screw Feeder	2.2KW	4-12mm	0.8- 1.2T/H	3200KG	2900*1150*2100
	Force Feeder	1.5KW
	Pellet machine	90/110KW
MZLH508	Screw Feeder	3KW	4-12mm	1.5-2.0T/H	4500KG	3000*1260*2150
	Force Feeder	1.5KW
	Pellet machine	110/132KW
MZLH678	Screw Feeder	3KW	4-12mm	2.0-2.5T/H	5800KG	3300*1450*2200
	Force Feeder	2.2KW
	Pellet machine	160/200KW
MZLH768	Screw Feeder	3KW	4-12mm	2.5-3.5T/H	6500KG	3300*1550*2200
	Force Feeder	2.2KW
	Pellet machine	200/220KW

FEATURE 2.1. Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.

2.2. The drive part of the machine(including motor)optimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noise.

2.3. Adopts the frequency -conversion speed ,regulating control to guarantee quality pellet feed.

2.4. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.

2.5. The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.
CAT LITTER PROCESS TECHNOLOGY
1.Raw materials receiving& Mixing Process:
Raw materials can be tofu, bean curd residue, soybean curb residue, soyabean fiber, corn starch, pea flour, bentonite, corn flour, soyabean meal, guar gum and etc. Raw materials are mixed according to a certain formula and ratio.Mixing is considered to be one of the essential operations in cat litter processing.
2.Pelletizing Process:
Cat Litter pellet mill is the core equipment of the whole cat litter production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
3. Drying Process:
After cat litter is pelletized, the moisture content is high, cat litters are dired to about 8% and sterilized by our micro-wave dryer, it could be stored for long time.
4.Cooling& Sifting Process:
The dried cat litter is a little hot. Counter-flow cooler & sifter is designed to cool tofu bentonite cat litter and screen qualified cat litters. It can decrease the temperature of cat litters, after processing, you can get the qualified cat litter without fine powder.
5. Packing Process:Finally, tofu cat litter/ bentonite cat litter/ pine wood cat litter should be packed for transporting, storing or selling.
6.Automatic Electrical Control System(Customized):
With the automatic electrical control system, the production line is with high efficiency and convenient operation.
FLOW CHART OF CAT LITTER PRODUCTION LINE
We can design and customize different capacity, processing according to your formula and requirement.
Here is the flow chart for cat litter line for your reference.

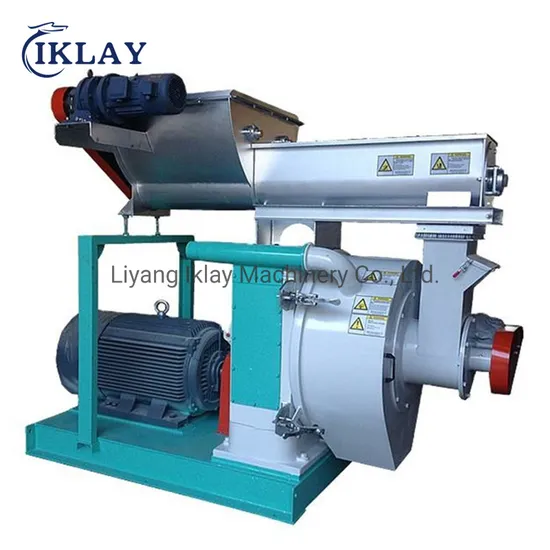

PHOTOS FOR CAT LITTER PELLET MACHINE
PHOTOS FOR CAT LITTER PRODUCTION LINE

---
