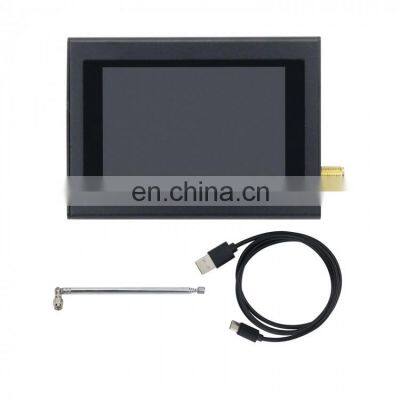

3.5" Screen 50KHz-200MHz Malachite SDR Receiver Malahit Shortwave Radio Receiver Without Accessory

Product Description

Product Description
3.5" Screen 50KHz-200MHz Malachite SDR Receiver Malahit Shortwave Radio Receiver Without Accessory Product Description Advantages:- Aluminum alloy shell- Malahit DSP SDR Receiver- 3.5" IPS display touch screen- Default frequency range: 50KHz-200MHz- Demodulation mode: AM, SSB, NFM, WFMProduct Parameters:1) The radio is constructed based on SDR principle, and the function is determined by loaded software.2) The frequency range is from 50 kHz to 200 MHz (default version) / from 50 kHz to 250 MHz, 400 MHz to 2 GHz (registered upgrade version).3) All types of analog modulation: AM, SSB, NFM, WFM;4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer.5) Use fully functional chip msi001;6) The powerful stm32h743 with a clock frequency of 480 MHz is applied.7) 3.5-inch IPS display touch screen.8) There is a built-in UHF.9) Control 2 encoders with buttons and touch screen.10) The power supply is supplied by the external TYPE-C (for Huawei mobile phone) interface and can be charged by TYPE-C. The internal battery voltage is 3.7V and the capacity is 2500mAh.11) The current consumption when listening to headphones is 300mA.12) Built-in receiving module in order to improve the HF reception on antenna, an additional board with a source follower has been developed. The board will be built into the standard receiver design.13) Connect to a computer via USB, you can transmit CAT, IQ and audio.14) 160 kHz span, with scalability.15) Sensitivity-Under the condition of up to 250MHz, 0.3μV = 10dB at s / w.16) Thanks to the characteristics of the msi001 chip used, dynamic blocking range is about 85dB.17) There is backlight control.18) SMA female antenna socket;19) Dimensions 102 x 74 x 29mm (excluding sizes of protrusions).20) Weight 240g.Package Included:- 1 x SDR ReceiverNote:- The default standard configuration is only the host; Other accessories, such as charger and antenna are not included, please purchase separately.- Default frequency range: 50KHz-200MHz. If other frequency ranges are needed, please contact customer service staff to know more details and pay extra money.- 400 MHz to 2 GHz (registered upgrade version) broadens the frequency and increase CW decoding and other functions. Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery

---
