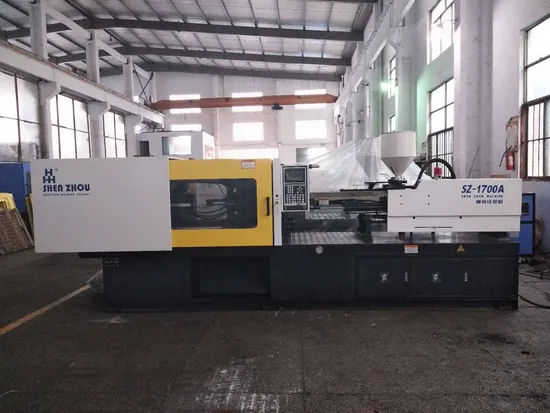

CE ISO Certified Automatic Disposable Plastic Spoon Fork Knife Making Injection Molding Machine

Product Description

Detailed information
SAMPLE
Technical Parameter

Item	unit	SZ-1700A
Screw diameter	mm	45	50	55
Screw L/D ratio	L/D	23.3	21	19.1
Theoretical injection capacity	cm3	358	442	534
Shot weight (PS)	g	326	402	486
Injection pressure	MPa	219	178	147
Injection stroke	mm	225
Screw speed	rpm	0-200
Heating power of barrel	Kw	13.6
Clamping force	kn	1700
Space between tie bars(H×V)	mm	480×480
Max. Mould height	mm	500
Min. mould height	mm	180
Opening stroke	mm	460
Distance between mould platens	mm	960
Ejector stroke	mm	115
Ejecting force	kn	45.2
Ejectors number	pc	5
Power of pump motor	Kw	15
Volume of oil tank	L	420
Dimension(L×W×H)	m	5.3×1.35×1.9
weight	ton	5.6

SZ-Series Injection Molding Machine Component List
Q & A:
Q1: How long can it be delivered after the order is placed?
If all the ordered goods are in stock, they can be delivered within 10 days after the order is placed;
In case of no inventory of the order goods, the goods can be delivered within 50-120 days after the order is placed.
Q2: What should I do if I find quality problems in the process of using my product?
If you need to replace the parts, we will provide them to you in the first time through international express. You will get new parts in 10-15 days.
Q3: Can I choose to buy equipment through Made-In-China company?
We have a professional international trade team, can provide you with certificate, shipping, customs clearance services, please feel free to buy.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: The delivery time of products without stock is too long for 45 days.
First of all, we will speed production to meet your needs.
In addition, we recommend that you have similar equipment in stock to meet your needs as soon as possible.
Q6: What if I choose the wrong machine?
We have pre-sales engineers with rich professional knowledge. According to your products, we provide the most suitable machines and solutions.

Q7: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller''s engineers, and engineer cost USD 80.00 per day.
Q8: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.

---
