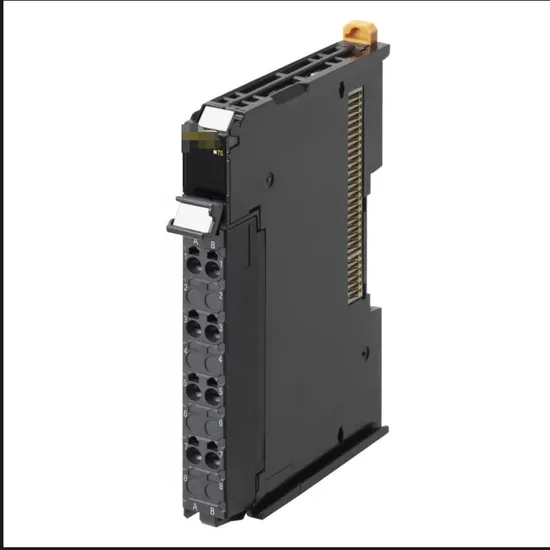

Nx-Pg0122 Forward/Reverse Direction Pulses or Pulse + Direction Signal PLC

Product Description

NX-series I/O covers a full range of units, including standard and high-speed digital I/O's, various performance levels in analogue I/O, encoder inputs and pulse outputs. The series is continuously expanded with e.g. time-stamped I/O, safety I/O, alternative bus systems and application-specific modules.
Ideal match with Sysmac Machine automation controllers Synchronous I/O updates, with less than 1 µs jitter High density: up to 16 digital or 8 analogue signals in 12 mm width Removable wiring terminals for easy system assembly and testing The NX I/O system offers a wide variety of I/O devices. Its ultra-fast internal bus system is synchronized when used with the Distributed Clock of the EtherCAT network. The resulting system-wide deterministic I/O operation allows machine builders to improve machine production rates and output quality. An EtherNet/IP bus coupler is available for non-synchronous use , e.g. with CJ-series PLC's.

I/O system	NX I/O Bus
Type of module	Pulse output
Digital input type	None
Digital output type	PNP, Voltage pulse
Signal processing	Synchronous, Task period prioritized
Number of pulse output channels	1
Max. pulse output frequency	500 kHz
I/O connection type	Push-in
Number of I/O connectors	1
Number of IOG (V-) terminals	6
Degree of protection (IP)	IP20
Product Height (unpacked)	104.5 mm
Product Width (unpacked)	12 mm
Product Depth (unpacked)	80.1 mm
Product Weight (unpacked)	100 g

---
