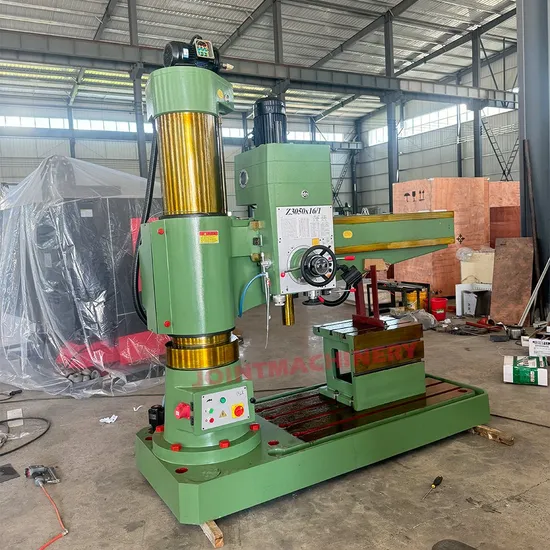

Hc-1000 Heavy Duty Radial Drilling Machine Tool for Precision Metalwork

Product Description

High rigidity, heavy drilling, double slideway design, stable operation
√ Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.
√ The gear is made of alloy steel, by quenching and carburizing heat treatment.
√ The spindle is made of chrome-molybdenum diamond, outstanding durability.

	Spindle Box Fixed range machining, spindle forward and reverse rotation, speed change, neutral and other actions are all controlled by a handle. ∨		Worktable The worktable has undergone aging treatment, making is sturdy and stable for a long time of use. ∨
∧ High Frequency Quenching Column The columns are all high-frequence quenched, with strong rigidity and high surface finish.		∧ Spindle The spindle is made of chrome-molybdnum diamond, outstanding durability.

HC-1000 Heavy Duty Radial Drilling Machine Tool for Precision Metalwork

Model		HC-1000
Distance between spindle center and column center	Max	1000
	Min	250
Distance between spindle nose to base	Max	1120
	Min	330
Diameter of spindle	E	220
Height of column	F	2100
Max distance between spindle head to base	G	2290
Floor space	HXI	1500*700
Longitudinal travel of spindle head	K	650
Up and down travel of radial ram	L	580
Up and down travel of spindle	M	210
Spindle hole	MT	NO.4
Size of worktable	mm	1050*700
Motor of spindle	kw	1.5(2HP)*4P
Elevator motor of radial ram	kw	0.375(1/2HP)*6P
Motor for clamping	kw	-
Spindle feed range	mm/rev	0.05-0.16
	Grade	3
Spindle rotation	60HZ rpm	88-1500
	50HZ rpm	75-1250
	Grade	6
Working capacity	Drilling	38
	Tapping (S45C)	16
Net weight	kg	1250
Gross weight	kg	1380
Dimension	mm	1600*750*2200

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of innovation and quality in the manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering dedication to high-quality machines and exceptional service ensures that we meet and exceed the needs of our global clientele. We prioritize stringent quality control and continuous improvement to align with the highest industry standards. By integrating cutting-edge core technologies from Taiwan and Germany with advanced production equipment and processes, we guarantee superior product quality and reliability. Our machines are celebrated for their extraordinary performance, offering precision, stability, and dependability, adept at tackling complex and demanding machining tasks. Exporting our products worldwide, we've received widespread acclaim, earning a strong foothold in Asia, Europe, South America, North America, and beyond. Through long-term partnerships with customers across diverse regions, we continually create substantial business value together, fostering trust and mutual growth.

---
