Hydraulic Plate Press Brake CNC Wholesale Servo Bending Machine Top Quality

Product Description

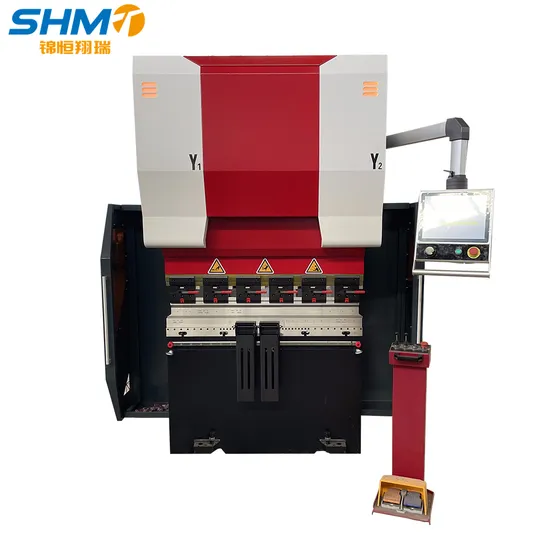

EPB Series100% Full Servo Electric CNC Press Brake
2.Feature
100% electric no hydraulic oil required
Up to %50 less energy consumption compared to a hydraulic press brake
Up to %35 faster compared to a hydraulic press brake
Humanized high speed, high efficiency electric servo Press Brake
Best choice for bending smali and medium sized parts
Full electricity no oil, low energy consumption, less maintenance
more stable and reliable machine
High speed and efficiency
Energy saving and environmental protection
The Servo is flexiable, reliable and advance bendingmachine. Servo Electric Press Brake combines highaccuracy, flexibility and reliability. This concept offerslow power consumption , less maintenance and nohydraulic oil anc components for operation.
3.Main pictures
4. Details of Machine
4. Technical parameter

Type	63T/2500	80T/3200	100T/3200	160T/3200	200T/3200	250T/3200	320T/3200
Nominal force(KN)	630	800	1000	1600	2000	2500	3200
Bending length(MM)	2500	3200	3200	3200	3200	3200	3200
Slider Travel(MM)	150	150	200	200	200	200	200
Throat Depth(MM)	350	350	400	400	400	400	400
Power(KW)	5.5	7.5	7.5	11	15	15	18.5
Back gauge travel(MM)	500	500	500	500	500	500	500
Back gauge speed(MM/S)	100	100	100	100	100	100	100
Dimension(MM)	3100x1450x2050	3500x1550x2100	3500x1580x2400	3500x1650x2500	3500x1680x2550	2500x1700x2600	3500x1800x2730

5.Optional Control systemStandard controller system
The new generaton 72BA controller is designed far pure electricbending machine development of a numencal contro systerllt provides approachable programming mode, so that theendng process becomes more simple.At the same time open interface flexible custom, can expand theperipheral configuraton, such as auxiliary car, so that bendingdecommes eatet.The shell is an optional part, customers can buy the systemseparately the shell is made separately. ESA VIS-875 system optional part:
.2t.5designed for mult touch screeneSupport multi touch application.No frame, simple but powerful.Support finger-tip work plece designSupport import af tools shapes (.dxf ifes).Support management of tool librarySupport tool and dle holders'managementSupoort datam angle measurerent system.Support ESA 3D Bend softwareeEquip standard industry 4.0 Modbus TCP interface ESA VIS-630 system optional part:
.High definibon 15 inch TFT color display.Builtin PLC
.2D graphics programming
.Calculation ofexpansion length.Graphic up and down mold, support multilateral mold, telescopicmmald arc mold,gooseneck mold, eteAutomatic and muanual optimization of graphic peograrruming.Support simulated bendingSupport graphic or numerical arc bending.P52 keyboard and mouse interface.Support dual linkage functon, no need to buy synchronous card ESA VIS-860 system optional part:
.18.5' designed for ulti touch screemeSupport rrulti touch application.No frame,siple but powerfuleSupport fingertip work piece designSupport import of tools shapes ( dxf ifles)Support management of tool librarySupport tool and die holders' managementSupport datam ang'e measurement syatemmSupport ESA 3D Bend software.Equip standard industry 4.0 Modbus TCP interface
6. Our Factory
7 Shipping pictures
Why Choice Us
1,Innovation Strength
The R&D team, technical engineer team, and production design adopt advanced technology
2,Quality Control
We have 50 professional equipment and advanced quality control processes to ensure that our products meet the requirements of CE international certification.
3,Quantity and Productivity
With the help of modern automated production lines, our two factories have 300 well-trained employees and an annual production capacity of 500 units
4,Our Service
Engineer's overseas service capabilities
