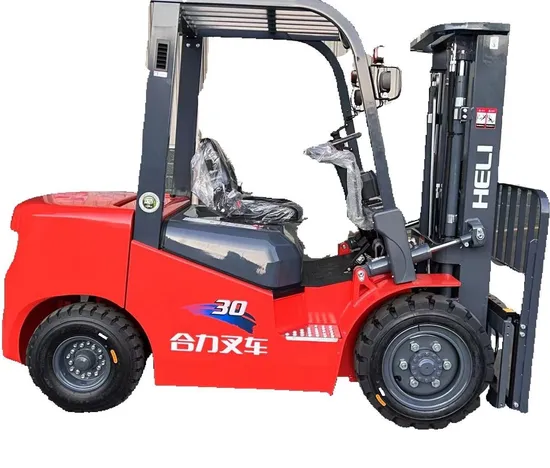

Heli Diesel Forklift 3 Tons Cpcd30 Small Forklift with Side Shift Mini Forklift Truck 3000mm Lifting Height Pneumatic Tire

Product Description

Product Description 1. Transmission box, drive axle and other core parts are self-made by HELI, their box manufacturing and assembly equipment has reached international advanced level. The key parts of the box are imported , and box assembly failure rate is low, and has the best quality of domestic box.2. With attachment of various types of the masts, all use double built-in hose pulley block, and have compact structure, beautiful appearance, good passage capacity , are first adopted in our country (Patent technology).3. All lifting mast pipeline have equipped with explosion proof safety valve to ensure the safety of the lifting process.4. Exhaust system use corrugated pipe to realize flexible connection with frame , and reduce the vibration and noise of the whole vehicle.5. The steering axle and the frame connection place has done the shock absorption processing, and the shock of whole vehicle has reduced by 30 %.6. Using intake muffler can suppress the intake pulse, so can reduce the intake noise.7. Hose joint and transition joint in pipeline are sealed with cone form, which has good sealing effect.8. Seal for the key parts of the cylinder are imported by NOK , which contribute to sealing reliable and quality stable.9. Steering trapezium use optimal program, and the maximum error is less than 1°, can reduce tire wear and improve service life.Applications: As lifting and transporting machineries, H2000 Series 2-3.5T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.
Detailed Photos
Product Parameters

Model	CPCD20	CPCD25	CPCD30	CPCD35
Power type	Diesel/Gasoline/LPG
Load capacity	2000 kg	2500 kg	3000 kg	3500 kg
Load center distance	500 mm
Standard mast lifting height	3 m
Overall length	3442/2522 mm	3667/2597 mm	3772/2702 mm	3783/2713 mm
Overall width	1150 mm		1225 mm
Overall height	2070 mm		2090 mm
Fork length	920 mm	1070 mm	1070 mm	1070 mm
