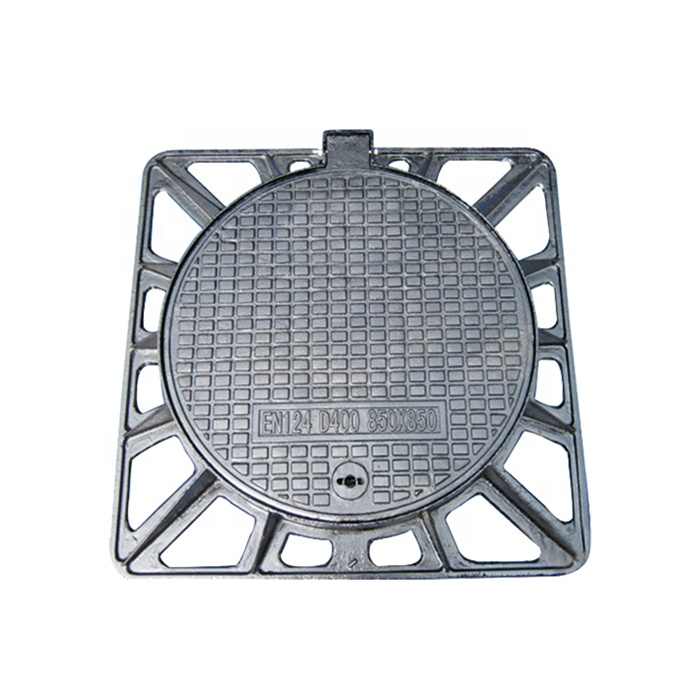

Manufacture EN124 Class D400 F900 850x850 600dia square heavy duty manhole covers with locking system

Product Details

Product Details

Product Description

Product Description
Products Description
Product Paramenters
Class
Frame size (mm)
clear opening (mm)
Depth
(mm)
unit weight
(kg)
Specification
D400
850*850
600
100
60
ductile iron; bolt lock; with hinge and gasket;closed key hole; different decorative pattern is available
C250
850*850
600
80
55

Product Name
Manhole cover
Material
Ductile iron GGG500/7,Gray iron,etc
Dimensions
As your demands
Surface
bitumen/epoxy painting/etc /or as your request
Load capacity
A15,B125,C250,D400,E600,F900
Standard
BS EN124-2: 2015
Shape&Size
Round: 300,400,500,600,700,etc.
Square: 250*250,300*300,400*400,500*500,600600,700*700,etc.
Shape
double triangle, round, square, rectangular, octagonal types & etc.
Color
grey/black/as your request
Weight
5-120kg/ as your requirement
Feature
anti-theft, Auti-rust, less noise, long time sevice,durable, easy to assemble & dismantle
Application
Sewer, Electronic, Sanitary, telecommunications, sewage, drainage, water, stormwater, fire protection & etc.
Package
wooden pallets or steel pallets, or as your request
Note
OEM service is available

Ductile Iron Manhole Cover and Grating
EN124:1994
Material: GGG500-7
Class
Application
Dimension (Frame mm)
A15
Pedestrians, Pedal Cyclists
Dia760
B125
Footways, Pedestrians, Car parks
290*290, dia800 ...
C250
Kerbside channel of roads
700*700, 600*800 ...
D400
Road, hard shoulders etc.
850*850, 920*920 ...
E600
Docks, aircraft pavements etc.
as per your demands
F900
Aircraft pavements etc.
as per your dema
