Basic Info.
Plastic Type
PP PE Pet PC PA PS
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Exporting Container
Production Capacity
30sets /Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
Product Description

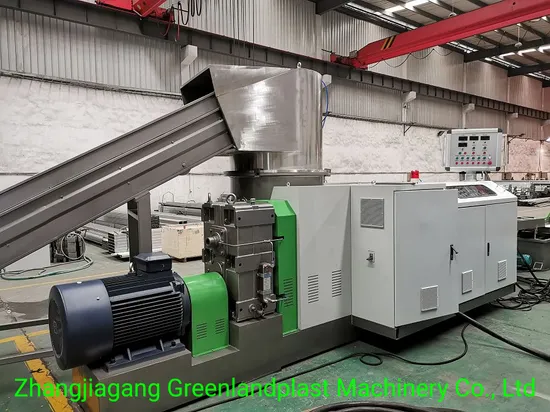

Greenlandplast manufacturer of pp pe film plastic recycling granulating machine
The GLA series agglomerating/compacting pelletizing machine combines function of crushing,compacting,and pelletizing to one-stop ,
applied in the plastic films, plastic bags ,raffia bags, non-woven material , filaments,and foamed materials recycling and pelletizing. and
pelletizing process,which is a reliable and efficiency solution .
Final product pellets/ granules produced by this machine, can directly be used in the production line for film blowing, pipe extrusion and
plastics injection, etc
Beneifts
1)Combines curshing,compacting,pelletizing processes in one-stop,high automation degree,less labor-cost
2)Suitable for various materials ,such as ,films,raffia,foamed material,etc.,
3)Agglomerating machine is with automatical temperature controlling ,when reach set temperature ,automatical water spraying cooling ,to prevent material temperature too high ,which affect pelletizing quality!
4)Adopt water-ring cutting ,save production line area, easy to operate,pellets size uniform and beautiful
5)Vibration dewatering method, saving power consumption and low noise
Product Parameters
Technical date
Model | Screw Diameter (mm) | L/D | Motor power | Capacity |
GLAP-80 | 80 | 33 | 37/55kw | 120-200kgh |
GLAP-100 | 100 | 33 | 55/90kw | 200-350kgh |
GLAP-120 | 120 | 33 | 90/132kw | 350-600kgh |
GLAP-140 | 140 | 33 | 110/160kw | 600-750kgh |
GLAP-160 | 160 | 33 | 132kw/220kw | 750-900kgh |
GLAP-180 | 180 | 33 | 185kw/250kw | 900-1000kgh |
Detailed Photos
1)Belt conveyor
2)Agglomerating/Compacting chamber
3)Extrusion pelletizing system
4)Hydryalic screen changing/ filter system&5)Cutting pelletizing system
6)Dewatering drying system
7)Air conveyor& storage system
