20biv. V. VI Dust Collecting Crushing Set

Product Description

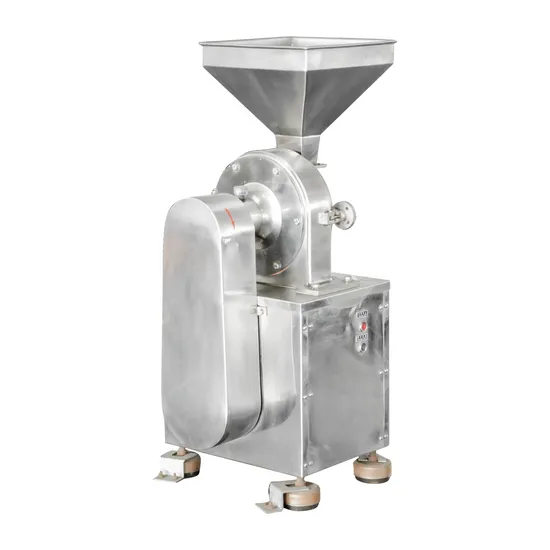

20biv. V. VI Dust Collecting Crushing Set
Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Technical Parameters:

Model	Production Capacity	Feeding Size	Spindle speed	Crushing Fineness	Crushing Motor	Dust collecting motor	overall dimension	weight
15BIV.V.VI	10-50kg/h	6mm	6000r/min	20-120mesh	2.2kw	0.55kw	950*450*1550	220kg
20BIV.V.VI	60-150kg/h	6mm	4500r/min	20-120mesh	4kw	1.5kw	1120*600*1750	480kg
30BIV.V.VI	100-400kg/h	10mm	3800r/min	20-120mesh	5.5kw	1.5kw	1250*660*1750	550kg
40BIV.V.VI	160-1000kg/h	12mm	3400r/min	20-120mesh	11kw	1.5kw	1450*700*1750	680kg

Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

---
