| US$3,850.00-5,000.00 | 1 Set (MOQ) |

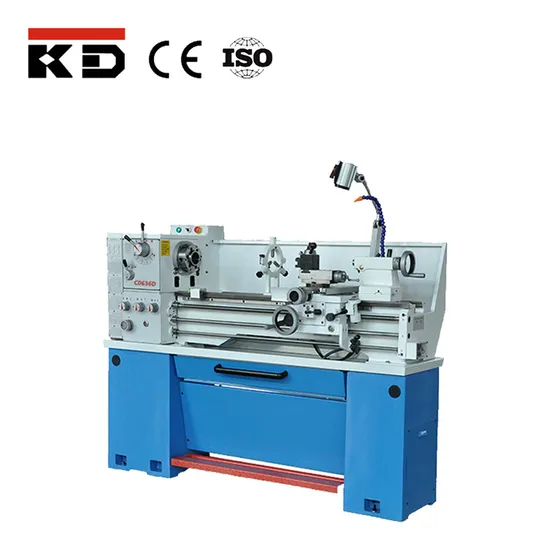

| MODELS | C0636D |
| CAPACITY | |
| Max.swing over bed | Ф360 mm |
| Max. swing over gap | Ф508 mm |
| Max.swing over slide | Ф230 mm |
| Center height | 182mm |
| Width of bed | 186 mm |
| Bed height | 308mm |
| Max.length of workpiece (two centers) | 1000 mm |
| SPINDLE | |
| Spindle nose | D5 |
| Spindle bore | Ф52 mm |
| Range of spindle speed | 90~2000 rpm |
| TRAVEL | |
| Cross slide travel | 160 mm |
| Compound slide travel | 68 mm |
| FEED | |
| Range of longitudinal feeds | 0.00168-0.1175in/r |
| Range of cross feeds | 0.00046-0.03231in/r |
| THREADING | |
| Inch threads | 4-112TPI |
| Metric threads | 0.1-7mm |
| Diametral threads | 16-112DP |
| Moduler threads | 0.1-1.75MP |
| LEADSCREW | |
| Diameter of leadscrew | 22 mm |
| Feed rod diameter | 19 mm |
| TAILSTOCK | |
| Diameter of tailstock quill | 32 mm |
| Taper bore of tailstock quill | M.T.NO.3 |
| OTHERS | |
| Main motor | 1.5KW |
| Cutting tools | 16 X 16 mm |
| Net weight/Gross weight(1000mm) | 720 kg |
