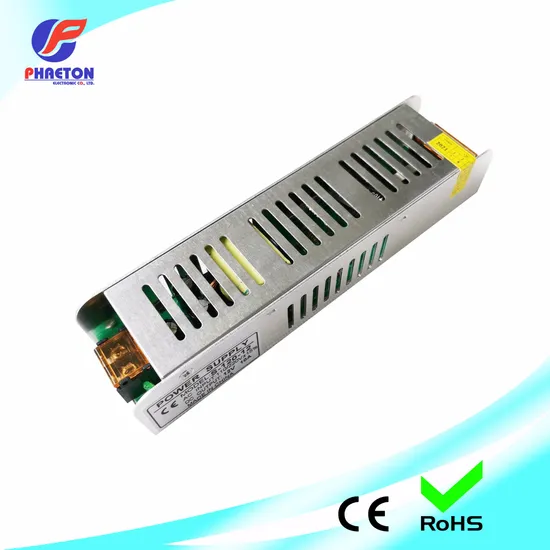

Switch power supply Driver 12V 10A for LED Strip light
Feature : 1. High Efficiency and good price
2. Built-in EMI filter
4. Low output ripple and noise
5. Indoor use / IP 20
6. Factory outlet, 2 years warranty
7. Protection: Over load,Over voltage,Short
8. Application: Slim lighting box
| 12V 10A 120W Switch Power |
| DC Output | DC Voltage: 12V |
| DC Current : 10A |
| Ripple & Noise: 80MV |
| DC Adjustable Range: ±10% Rated Voltage |
| Voltage Tolerance: ±2.0% |
| Line Regulation: ±0.5% |
| Load Regulation: ±1% |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz |
| Efficiency:90% |
| AC Current: 0.86/115V 0.4A/230V |
| AC Inrush Current: 20A/115V 40A/230V |
| Leakage Current< 0.5mA /240VAC |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery |
| Over-temp. : Shut down O/P voltage, Auto-recovery |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing |
| Storage Temp.: -10~ +60C° |
| Storage Humidity: 10 ~ 95% RH |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Safety standards: CE,RoHS,FCC,ISO9001 |
