Agricultural Machinery Factory Tractor Three Point Mounted Wing-Folded Hydraulic Offset Disc Harrow

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
------The drafting Unit of the Chinese Standard For Disc Harrows And Disc Ploughs

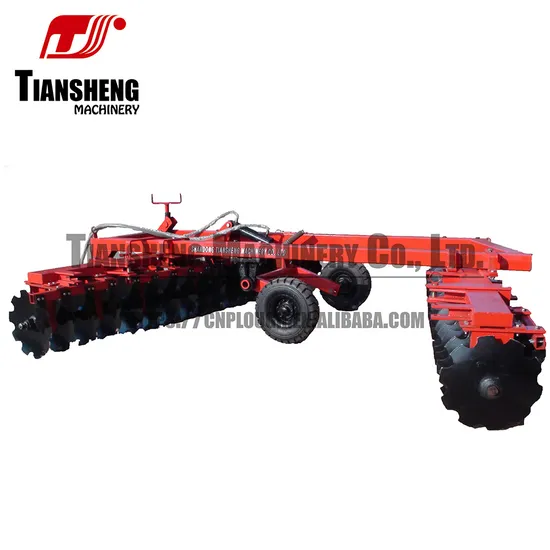

Name:1BJ SERIES OF WING-FOLDED HYDRAULIC OFFSET DISC HARROW
The series Disc Harrow frame are made of qualified steel tube, Their structures are reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJseries suspension Middle-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 70HP to 160HP type tractors.Its wings can bo folded hydraulically,which also can save space.It is strong, high-quality, and efficient.
The 1BJ series Middle-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.

Model	Unit	1BJ-3.0	1BJ-3.4	1BJ-4.0	1BJ-4.4	1BJ-5.3
Working width	m	3.0	3.4	4.0	4.4	5.3
Working depth	mm	140	140	140	140	140
No. of discs	pcs	28	32	36	40	48
Disc diameter	mm	560	560	560	560	560
Weight	kg	1300	1500	1700	2000	2300
Tractor power	hp	70-90	80-100	100-120	120-140	140-160
Wing-Folded		NO	NO	YES	YES	YES
Linkage		Trailed	Trailed	Trailed	Trailed	Trailed

Detailed Photos

Company Profile
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
