Basic Info.
Function
Green Signal, Red Signal, Yellow Signal, Flash Alarm Signals, Direction Signals, Traffic Signal Wand, Lane Signals, Crosswalk Signal, Command Signal
Control Method
Timing Control
Housing Material
Metal Shell
Mask Specification
Φ200mm
Surface Treatment
Hot-DIP Galvanized
Raw Material
Q235B/A36/Q345b/A572, Q460, ASTM573 Gr65, Gr50
Welding
Advanced Submerge-Arc Welding Technology
Shape
Conical, Square, Round, Octagonal Optional
Galvanizing Standard
En ISO 1461 or Equivalent
Welding Standard
En 1011 or Equivalent
Design Standard
En 40-5 or Equivalent
Wind Speed
7m/S or Customized
Transport Package
Bubble Packing+Blanket Packing
Production Capacity
5000PCS/Month
Product Description
Product Parameters H6M+L0.6M Traffic Light Pole Diameter
Lamp pole
Steel:Q235B
Diameter of upright rod: 220-280mm
Thickness of upright rod: 5mm
Diameter of horizontal rod: 100-200mm
Thickness of horizontal rod: 4mm
Diameter of bottom flange: 550mm
Thickness of bottom flange: 18mm
Connecting flange: 300*300mm
Welding mode: Automatic submerged-arc welding
Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying
Thickness of zinc coating: ≥80um
Thickness of sprayed plastic coating: >=100 um
Appearance: Smooth surface, hardness >= 2H
| Traffic light:
Form: Combination of red, green, and yellow
Housing: Aluminum alloy or PC
Dimensions: 1050*350mm
Light source: Full screen or arrow
Diameter of single lamp: 300,400mm
Power: 5-24W
Voltage: 220V
Weight: About 10KG
Sign:
Customization: Yes
Material: Aluminum-alloy plate + aluminum slot
Category of reflective coating: Super High Level, High Level, Diamond Level
Background color: Yellow, blue, or white
Thickness: 1.2,1.5,2,3
|
| Main Pole Height:From 6M to 6.8M at 5-10mm thickness for Options. |
| Cantilever Length:From 3METER to 14M at 4-8mm thickness for Options. |
| ShapeConical, octagonal, square, cylinder |
| MaterialUsually Q235B/A36,then Q345B/A572,Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 for option. |
| Surface treatmentHot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Production ProcessRaw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Manufactured Pictures
Product Advantages Top Brand Raw Material: A selection of premium steel plates including Q235B, Q345, Q355, GR460, and more options.
A Mill Certificate, duly issued by the mill factory with an official stamp and signature, must be provided to guarantee material authenticity. Steel Thickness Inspection: Precision tolerance less than 0.1mm.
Compliance with ASTM A36 = Q235B standards.
Adheres to EN 10025 standards. Magnetic & Ultrasonic Welding Inspection ensures superior weld quality.
Compliance with AWS D1.1 standards.
Conforms to EN1090-2 standards. Hot Dip Galvanizing: Achieving an average thickness greater than 86UM.
Meets GB/T13912-2002 standards.
Compliance with ASTM A123 standards.
Meets ENSIO 1461 standards. Powder Coating: Exceeding a thickness of 100UM.
Compliant with GB/T 3181-2008 standards.
Adheres to ASTMD339-83 standards. Company Profile

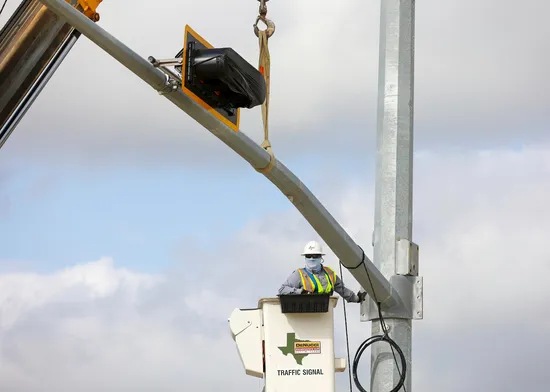

Project Cases
>>
6m Hot-DIP Galvanized Traffic Light Pole
>>
