45 Bevel J C Shape Soft Forming Edge Banding Machine Fully Automatic

Product Description

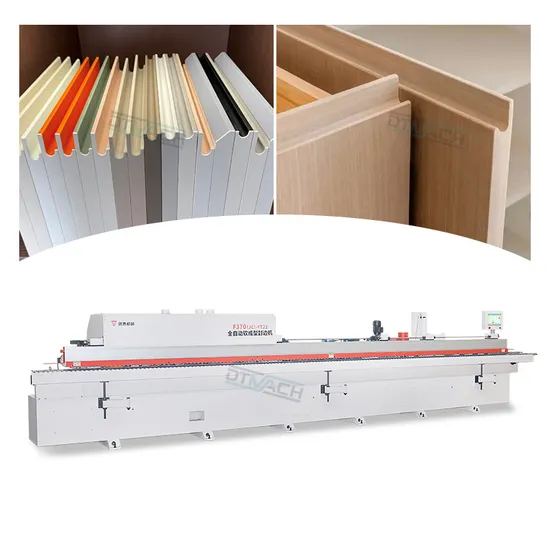

F370 Fully Automatic Soft Forming Edge Banding Machine
Fully automatic J C X L shape soft forming edge banding machine: 1. 8 functions: pre-milling, gluing, gluing, end cutting, trimming, scraping, polishing, cleaning. 2. Upper glue pot, 3000ml, EVA and PUR glue available, one key to change glue, easy to operate. 3. 3 units of diamond pre-milling knives, high power milling combination, rough and fine milling, flat cutting surface. 4. 8 units of forming hot pressing paste to achieve perfect bonding effect.
5. Rough trimming unit, finishing unit, circular arc scraping unit, ensure perfect trimming effect. Product Parameters

Model	F370
Voltage	380V/50hz/3 phase can customize
Total power	42kw
Air pressure	0.6-0.8Mpa
Tank volume	5L
Exernal dust collector	Φ100*8
Glue pot operating temperature	110ºC-210ºC
Edge band thickness	0.52-0.56mm
Glue pot	2600ml
Feeding speed	12m/min
Type of hot melt adhesive	PUR EVA
Edge band width	J type 54mm C type 33mm
Plate size	≥250*120mm
Plate shape	J shape, C shape(customized L shape, bevel straight edge)
Edge banding material	PVC (matter surface is recommend, no glossy surface is required)
Dimensions	8300*1000-1560*1610
Net weight	2700kg

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order? A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .

---
