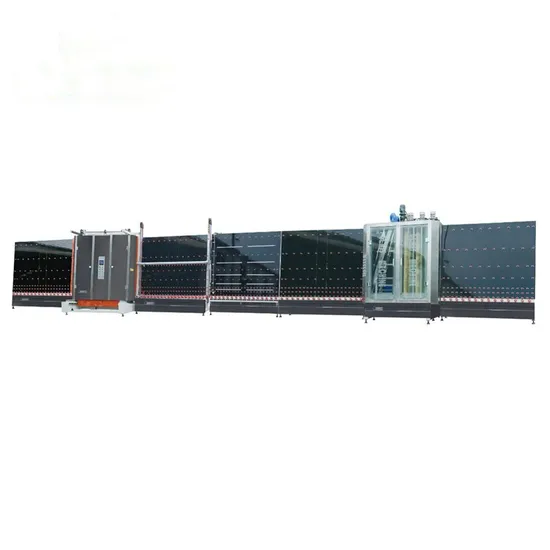

Top Quality Double Glazing Glass Production Line PLC Vertical CNC Automatic Insulating Glass Machine

Product Description

Top Quality Double Glazing Glass Production Line PLC Vertical CNC Automatic Insulating Glass Machine
Machine feature:
-Automatically distinguish the coating side of coated glass and low-E glass.
-Static state load glass when adding glass material to ensure safety in production.
-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long
useful life. Adopt waterproof bearing without oil lubricant.
-Can clean 3~25mm thickness glass, with wide using range.
-It can process same edge double insulating glass with high efficiency.
-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.
- PLC control system with touch screen interface, simple operation and high automatic.
-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.
-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
Parameter:

Model	JYW-1600A
Input Voltage	380V 50Hz
Total Power	23.0KW
Cutting Glass Size	1600×2000mm
Min Glass Size	280×450mm
Glass Thickness	3~18mm
Working Speed	8~45m/min
Total Weight	5000kg
Size of Line	18500×2400×3200mm

Machine details:
Company information
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
