High Speed Single Wire Chain Link Fencing Making Machine Wire Mesh Supplier

Product Description

High Speed Single wire / Double wire Chain Link Fencing Making Machine Wire Mesh Supplier in Best Price
Product Description
The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.
Our Advantages
1. Alarm device as a reminder of stopping machine.
2. Emergency button can stop machine conveniently. 3. Sides of chain link fence can be twisted or knuckled as required.
4. PLC control system.
5. Adopt servo motor.
6. Supply free spare parts. 7. High speed.
Product Parameters

Netting width Specification	2M	3M	4M
No. of input wire	1
Capacity(based on mesh size 50mm*50mm)	60-70m2/h
Power supply	380v 50Hz(60Hz can be custom-made)
Speed of the axle of shaped knife	200-700rpm
Suitable wire to the machine	Galvanized wire, PVC wire , steel wire
Diameter of wire	1.6-4.0mm(depend on the mesh opening size)
Power consumption	a total of 9.34kw, 5 motors(based on 4M, it relate to the dia. of wire, and the power can be custom-made.)
Mesh size	25*25mm-100*100mm
Weight of equipment	2.0t	2.5t	3.0t
Main machine outer size	4.8m*1.1m*2.3m	5.5m*1.1m*2.3m	6.5m*1.1m*2.3m
Auxiliary machine outer size	2.5m*1.5m*1.1m	4m*1.5m*1.1m	4.5m*1.5m*1.1m
Color of machine	can be custom-made

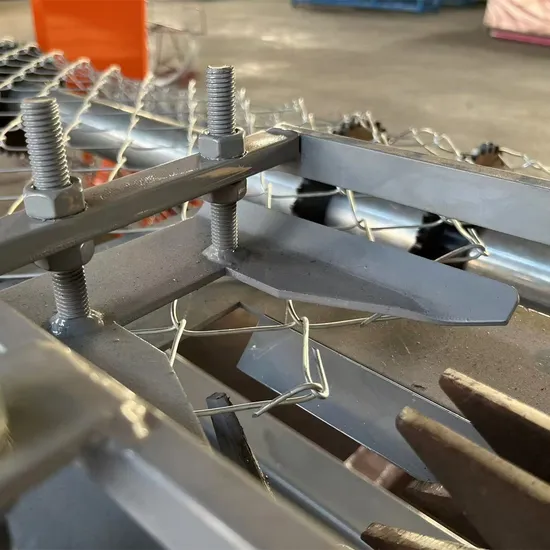

Product show

Packaging & Shipping
FAQ

1. What is your machine type:
A: We offer both single wire and double wire chain link fence machine
2. what is the raw material for netting:
A: Zinc-coated wire, PVC coated wire
3. What is the mesh size for your machine?
A: The mesh size is from 25*25-100*100mm
4. What is the guarantee?
A: 12 months after commissioning or 18months after shipment. Whichever first is in valid. (it is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer.)
5. How to install chain link fence machine?
A: 1 technicians and 1 interpreter will be assigned to coordinate installation, commissioning and training, for the maximum duration of 15 working days your side will supply the air return tickets, food, accommodation(hotel and one day three meals), transportation, communication, insurance , tax ( if have) for the technicians and the interpreter. USD120.00/day/person working fee will be paid to them.

---
