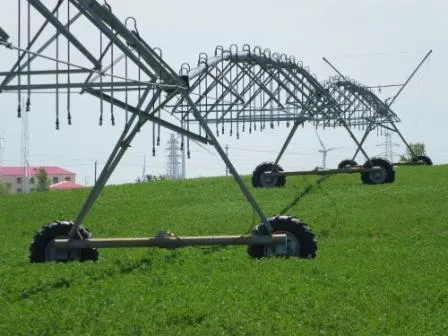

Reliable Center Pivot Irrigation System Valley Type Sprinkler Machine

Product Description

SPECIFICATION

No.	Item	Specification
1	Center Point	Raise pipe 6 5/8" (168mm) and 8 5/8", Tower Legs: 90x90x8mm High Strength structural steel angles with HDG finishing.
2	Main Pipe	OD=6 5/8" (168mm) or 8 5/8" (219mm), WT=3mm, 5.75m or 11.5m length which depends on span length configuration. American standards screw and nuts (3 points self-locking). Water outlets spacing 192cm or 288 cm
3	Truss Span	37.5m, 43.3m, 49.1m, 54.9m and 60.7m length spans for selection. Ball joint span connections. Truss rod diameter 20mm/22mm, Truss angle specification 50x50x5mm
4	Tires	14.9-24 irrigation tires, with inner tube
5	Cable	11C span cables (4x12AWG+7x16AWG) and 4 C power cables for motors, with aluminum shielding, UL certified.
6	Gear Motor	40:1, 0.75HP, or 25:1, 1.5HP for selection (normally, a machine more than 5 spans will use high speed motors).
7	Gear Box	50:1 or 52:1, American standard product.
8	Overhang	2.7m, 5.5m, 8.2m,11m, 16.5m, 19.5m, and 25m for selection
9	Sprinkler System	Nelson D3000 R3000 or O3000 with regulator
10	Electrical Item	Standard panel, with Tower Box and Collecting Ring, main items includes Eagle percentage timer, Honeywell micro-switch, Schneider connectors, etc.

Specification of pipe	Span Length (m)	Spacing between outlets	Minimum clean Height	Wet Weight
OD=6 5/8" (168mm) WT=3mm HDG finishing	43.3	192cm or 288 cm	2.99 m	2580Kg
	49.1		2.93m	2830Kg
	54.9		2.86m	2080Kg
	60.7		2.83m	3320Kg
OD=8 5/8" (219mm) WT=3mm	43.3	192cm or 288 cm	2.99m	3410Kg
	49.1		2.93m	3770Kg

We, BEIJING IRRIGATION TECHNOLOGY CO LTD, is a professional center pivot irrigation supplier in China, we have been working on the center pivot irrigation system and components for more than 15 years with strong technology and huge production capacity.
Our irrigation system and components are famous for high quality, high compatibility, and low failure, and low price. The pipes, truss rod, and other steel parts, control system, towerbox, collector ring and control panel, are all replacable with Zimmatic and Valley.
And we are cooperating with many other component manufacturer in China, who is producing for the world leading center pivot irrigation brand.
Our motors, gearbox, tire, wheels, electricity cable are all in same standard and quality as VALLEY and ZIMMATIC
We provide to our customers in Russia, Romania, Ukraine, Spain, Saudi Arabia, Sudan, with high quality products, outstanding service at a fair price.

---
