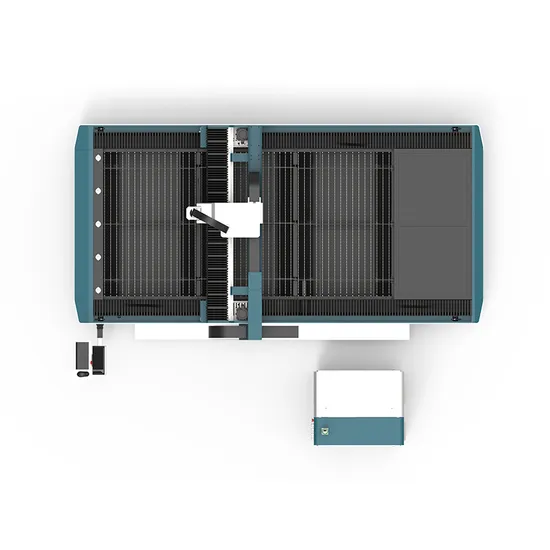

Lxshow Raycus CNC Fiber Laser Cutting Machine for Sheet Metal

Product Description

1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.5. China Top fiber laser machine cutting manufactuers, low cost and best quality, with CE etc certificates.
Parameters

Model	LX3015F
Cutting working area	3000x1500mm
Laser Generator	Raycus / IPG /MAX
Transmission system	Gear + rails
Fiber Laser Power	1000W
X.Y axis location accuracy	±0.01mm
X.Y axis repeat location accuracy	±0.01mm
X.Y axis max moving speed	120m/min
Laser wave length	1064nm
Machine color	Support custom made
Gross weight	3500KG
Machine Warranty	3 years

Advantages 1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision. 2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.

Real Shot

Main Parts
Fiber laser cutting machine head
> Raytools Laser CuttingHead, Optimized optical configuration and smooth and efficient airflow design. Au3tech, Pretic, WSX, can be optional.
Fiber Laser Generator
> Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
Fiber Laser Cutting Control Display
> Fiber laser controller Bochu or other was installed in the control cabinet, you can operate the laser machine according to the control display, very easy operation!
Sample

Factory * About Jinan Lingxiu Laser Equipment Co., Ltd. It is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures
Certification Display
About machine quality, we have get the third party certification, and about the machine, we have 3 years machine warranty, if you need, we always here.

Our Customers
Offline Exhibition
After-sales Service
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

---
