Cryogenic Rubber Deflashing Deburring Machine for Precision Rubber Removal

Product Description

As the esteemed leader of China's automatic rubber and plastic burr cleaning sector, we at NANJING PEGE TECHNO MACHINE CO., LTD., proudly present unparalleled innovation and technology.
Product Description Witness the transformative journey of rubber and plastic components as they enter the chill of cryogenic temperatures. This unique process hardens, renders them brittle, and initiates crystallization. In this pivotal moment, molded item flashes, more delicate than their main product counterparts, succumb to brittleness first. Capitalizing on this, the PEGE Cryogenic Deflashing Machine propels high-speed, specialized plastic media to expertly eliminate these fragile burrs, offering an immaculate finish while safeguarding the product's integrity.
FUNCTIONS
Our cutting-edge machine masterfully removes flashes from small rubber and plastic components like O-rings, gaskets, and intricately molded parts, delivering unparalleled precision and unmatched efficiency.
Utilizing the prowess of cryogenic technology, our machine first solidifies flashes, then employs high-velocity polycarbonate media to effortlessly refine the surface quality of molded parts, propelling them to superior standards of excellence.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T

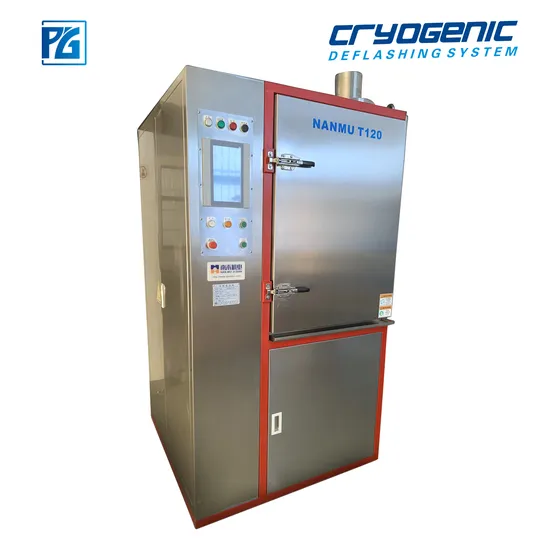

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. O-rings and diverse irregular rubber parts, adaptable to a variety of materials and sizes for optimal performance.
B. Micro electronic components, meticulously ensuring precision, quality, and reliability.
C. Precision-crafted elastomeric parts, ideal for high-stakes, critical applications requiring utmost accuracy.
D. Precision-molded plastic components, upholding the highest standards of quality and exacting detail.
E. R & D prototype runs, where cutting-edge innovation seamlessly meets unwavering reliability.
F. Die-cast products such as zinc, aluminum, and magnesium alloys, showcasing exceptional durability and finesse.
FEATURES
Unmatched Efficiency: Revolutionizing productivity, this machine replaces the labor of 60-80 workers in flash removal, optimizing operations significantly.
Unrivaled Precision: Expertly removing the smallest and most persistent flashes that evade manual workers, significantly enhancing product precision and quality.
Cost-Effective Solution: Providing a more economical alternative to manual labor, it lowers costs while amplifying operational efficiency.
OUR WORKSHOP
PACKING
SHIPPING

---
