| US$4,800.00 | 1 Piece (MOQ) |

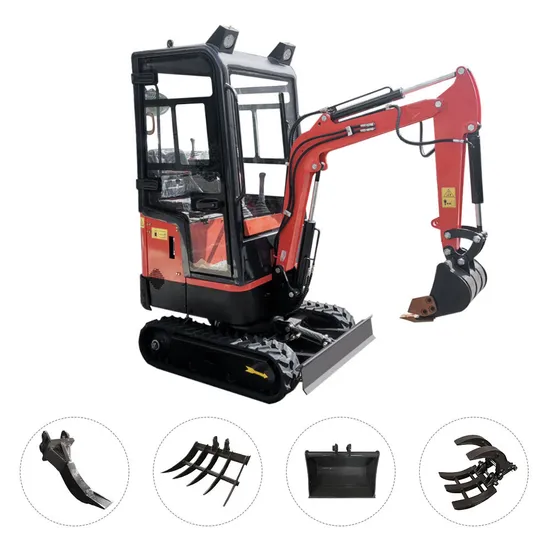

| Model | MG12 |
| Operate Weight | 1200kg |
| Digging bucket capacity | 0.025cbm |
| Bucket width | 380mm |
| Engine | KOOP 192F/B&S/LTC |
| Power | 8.2kw |
| Bore stroke | Single Cylinder |
| Climbing capability | 30° |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2775x930x2219 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Track width | 180 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Digging height | 2650 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1350 mm |
| Max. Upgrade height of bulldozer blade | 325 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
