US$3,000.00-4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Knee Type Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Vertical Travel(mm)
420mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

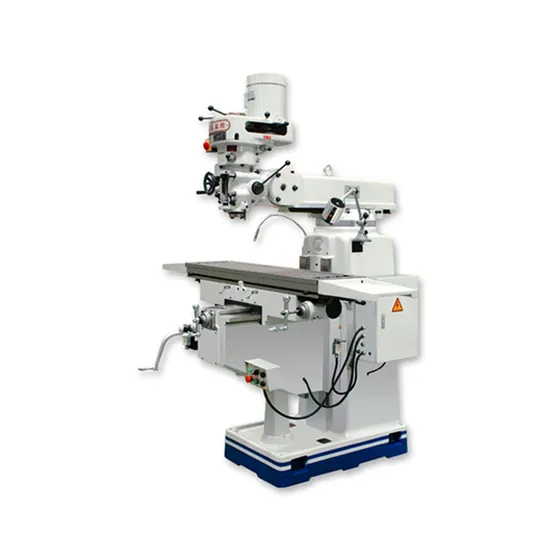

MILLING MACHINE FEATURES:
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
SPECIFICATIONS:
| MODEL | X6333V |
| Features | Rectangular guide way on Y/Z-axis |
| Table size | 305×1370 |
| Table loading | 350Kg |
| Long travel | 800mm |
| Cross travel | 420mm |
| Vertical travel | 420mm |
| T-slot No. and size | 3×16 |
| Ram travel | 500mm |
| Distance from spindle nose to table surface | 0-405mm |
| Spindle hole taper | ISO40 |
| Sleeve Diameter | 85mm |
| Spindle travel | 127mm |
| Spindle speed | Variable speed 50HZ: 66-4540 60HZ: 80-5440 |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| Spindle motor | 3.75KW/5HP(380V) 2.2KW/3HP(220V)
Milling Head from Taiwan |
| Head swivel | 90° |
| Head tilting | 45° |
| Dimension of machine | 1516×1550×2500 |
| G.W/set | 1500Kg |
| SPECIFICATION | UNIT | XN6330H | X6330H | XS6330H |
| Table size | mm | 300X1300 | 300X1370 | 300X1500 | 300X1370 | 300X1500 |
| Table longitudinal travel | mm | 845 | 1000 | 880 | 1000 |
| Table cross travel | mm | 385 | 380 |
| Table vertical travel | mm | 435 |
| Table longitudinal feed rate | mm/min | 0-3500
Servo motor | --- |
| Table cross feed rate | mm/min |
| Knee vertical feed speed | mm/min | 900 |
V
| Motor power | HP | 5HP | Standard:3HP/Optional:5HP |
| Spindle speed | rpm | Standard:16steps, 50HZ: 65-4500/60HZ:80-5440
Optional:variable speed: 65-3750 |
| Spindle taper | | ISO40 | Standard:R8/Optional:ISO40 |
| Quill travel | mm | 127 |
| Quill feed | mm/r | 0.04/0.08/0.15 |
| Head rotating | | R/L 90° | R/L 90°, B/F 45° |
| Distance from spindle nose to table surface | mm | 115-545 |
H
| Motor power | HP | 5HP |
| Spindle speed | rpm | 50HZ: 45/80/165/260/500/980
60HZ: 55/100/200/315/600/1180 |
| Spindle taper | | ISO40 |
| Distance from spindle to table | mm | -20-410 |
| Distance from spindle to arm | mm | 183 |
| Arm travel | mm | 480 |
| Arm rotating angle | | 360° |
| Net weight | kg | 1900 | 1950 | 1680 | 1730 |
| Package size | m | 1.8X1.5X2.2 | 1.8X1.8X2.2 | 1.8X1.6X2.2 | 1.8X1.8X2.2 |
>>
