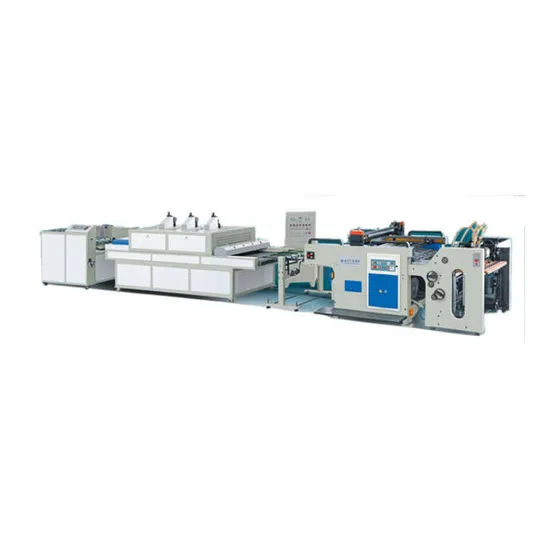

Fully Automatic High-Speed and High-Precision Flat Screen Printing Machine

Product Description

It is a kind of auto flat screen press of high speed and high precision. It,s skilled manufacture, reason able structure, stable and high speed print paper feeding is equipped. It is suitable for soft and half-soft materials of Frequency control of motor speed is monitored and controlled automatically, PLC program table controller controls the whole machine. Centralized control is adopted in this machine with easy operation and high sensitivity. It reaches an advanced level in the country. Only one person is needed to operate the press. This machine can be used in kinds of print, especially colors of golden and credit card, and so on. The full oil, fresh color and stereoscopic model make the press better than others. Otherwise, customers can equip the machine with dryer, UV photofixation machine, paper collection machine into an auto screen press line.

1. Automatic control, automatic delivery, automatic paper jogging, simple and convenient adjustment.
2. Performed by pneumatic elements. paper breaking and other damaging are effectively avoided.
3. Up and down limit safety equipment for paper stacker is installed to avoid damaging the machine because of break down limit equipment.

Model	720	780	1020
Max paper dimension	720*520mm	780*540mm	1020*720mm
Min paper dimension	350*270mm	350*270mm	560*350mm
Max printing dimension	720*500mm	780*520mm	1020*700mm
border	<=13mm	<=13mm	<=13
Paper thickness	80-350g/m2	80-350g/m2	80-350g/m2
Printing plate dimension	880*880mm	940*940mm	1280*1140mm
Max printing speed	1000-3600pcs/h	1000-3000pcs/h	1000-2500pcs/h
weight	3000kg	3300kg	4400kg
supply	8.0kw	8.0kw	10.5kw
Overall dimension	4100*1960*1270mm	4280*2080*1270mm	4750*2720*1430

Machine transport and packing
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our company
Certificate:
FAQ:
______________________________________________________________________Q1: Are you a manufacturer?Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.Q2: Do you have stock products to sell?We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.Q3: How about installation and training?Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.Q4: How about warranty?Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear. Why choose us?
_____________________________________________________________________1.Our brand "INNOVO" is well-known in our domestic market and over 70 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.2.Genuine products with excellent quality. Company has always proved the 100% quality.3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.5.Less cost of purchase: We are the manufacturer directly.6.Attendant customers queries promptly.

---
