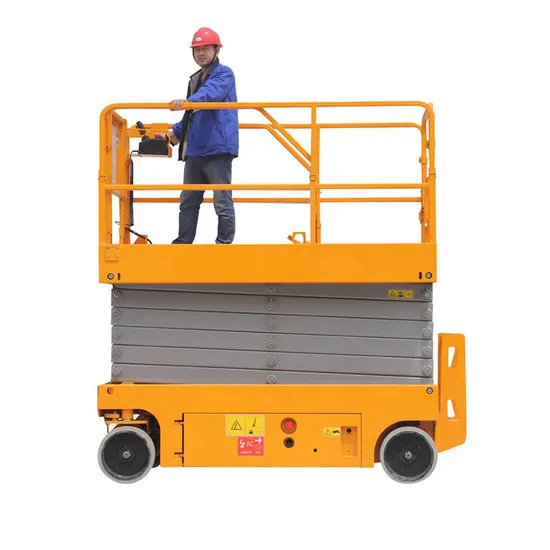

High Quality Self Propelled Professional Electric Scissor Lift

Product Description

High quality self propelled Professional electric scissor lift

Model No.		SP06	SP08	SP10	SP12
Lifting capacity	kg	300	300	300	300
Folding maximum height(guardrail unfolding)	mm	2150	2275	2400	2525
Folding maximum height(guardrail removed)	mm	1190	1315	1440	1565
Overall Length	mm	2400	2400	2400	2400
Overall Width	mm	1150	1150	1150	1150
Platform Size	mm	2270×1150	2270×1150	2270×1150	2270×1150
Platform extend size	mm	900	900	900	900
Minimumground clearance(folding)	mm	110	110	110	110
Minimumground clearance(rising)	mm	20	20	20	20
Wheelbase	mm	1850	1850	1850	1850
Minimum turn radius(inner wheel)	mm	0	0	0	0
Minimum turn radius(outer wheel)	mm	2100	2100	2100	2100
Power source	v/kw	24/3.0	24/3.0	24/3.0	24/3.0
Running speed(folding)	km/h	4	4	4	4
Running speed(rising)	km/h	0.8	0.8	0.8	0.8
Rising/falling speed	sec	40/50	40/50	70/80	70/80
Battery	V/Ah	4×6/210	4×6/210	4×6/210	4×6/210
Charger	V/A	24/25	24/25	24/25	24/25
Maximum climbing ability	%	20	20	20	20
Maximum working allowable angle	/	2-3°	2-3°	2-3°	2-3°
Way of control	/	Electro-hydraulic proportion control
Driver	/	Double front-wheel
Hydraulic drive	/	Double rear-wheel
Wheel size(stuffed&no mark)	/	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Whole weight	kg	1900	2080	2490	2760

Aerial Scissor Lift is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.
Compact structure can be modularized into a small space;With a new electric propulsion system, ride provides more flexibility,more environmentally friendly exhaust emissions.Automatic hole protection system, safe and reliable;The workspace of an extensible platform.
Product Description - Aerial Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Detailed Images
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor
7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod
Applications - Aerial Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Certifications - Aerial Scissor Lift are approved by European certificates and meet the international standards.
