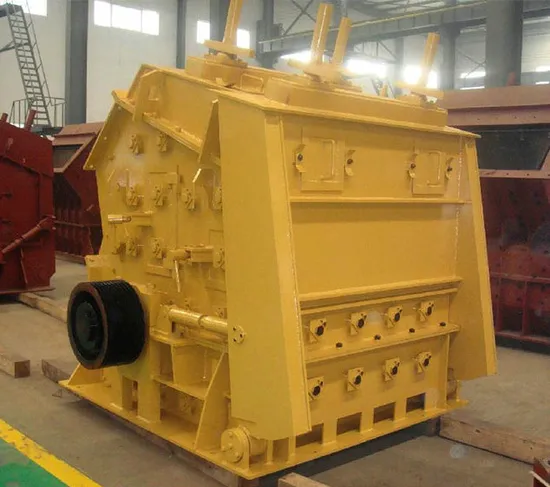

Large Capacity Impact Crusher Equipment

US$1,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PF-1010 impact crusher
Warranty
One Year, Excluding Wear Parts
Engineering Support
Available Per Customer Request
Capacity
50-80 T/H
Power
75kw
Wear Parts
Blow Bar, Impact Plate
Output Size
5-60mm
Motor Type
Electric or Hydraulic Type
Type
Impact Crusher
Object
Coal
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Cylinder Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Transport Package
Naked or Wooden Case
Specification
2.5x2.0x2.57m
Trademark
Super-above
Origin
Shanghai, China
HS Code
8474209000
Production Capacity
80sets Per Month

Product Description

Brief introduction of impact crusher The pf product impact crusher is acknowledged in this field for a long time and gives smooth running resulting power economy and higher efficiency. Jinma brand stone crusher is mainly used to crush many kinds of large, medium, small materials such as rock or stone whose side length is less than 500mm, and compression resistance less than 350Mpa. It is widely used in hydroelectricity, highway, artificial rock, stone and sand, building material, etc.
Working principle of impact crusher
This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.
Applications of impact crusher
Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. Impact breaking equipments are ideal choice for crushing and screening. This PF series stone crusher features reasonable structure, high productivity, easy operation and maintenance and safe performance.
Advantages of impact crusher
1)Excellent cubic final products
2)Special structure
3)Non-key connection
4)High chrome hammer
5)Easy adjustment, high reduction ration

Technical Parameters of impact crusher
Model
rotor size
(mm)
Feed opening
(mm)
Max. feed size
(mm)
Capacity
(t/h)
Power
(kw)
Weight
(T)
PF-0607
Φ644×740
320×730
100
5-15
30
4
PF-0807
Φ850×700
400×730
200
10-25
45
8
PF-1007
Φ1000×700
400×730
250
25-45
37-55
9.2
PF-1008
Φ1000×800
400×830
260
30-50
55-75
10.5
PF-1010
Φ1000×1050
400×1080
300
50-80
75-90
14
PF-1210
Φ1250×1050
400×1080
300
70-120
110-132
17
PF-1214
Φ1250×1400
400×1430
300
130-180
132-180
21
PF-1315
Φ1320×1500
860×1520
450
160-250
180-250
25
PF-1320
Φ1320×2000
860×2030
500
160-300
300-375
30
Working sites of impact crusher
Packing&DeliveryPackaging Details: We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements. Delivery Time: We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
Detailed parts of impact crusher
