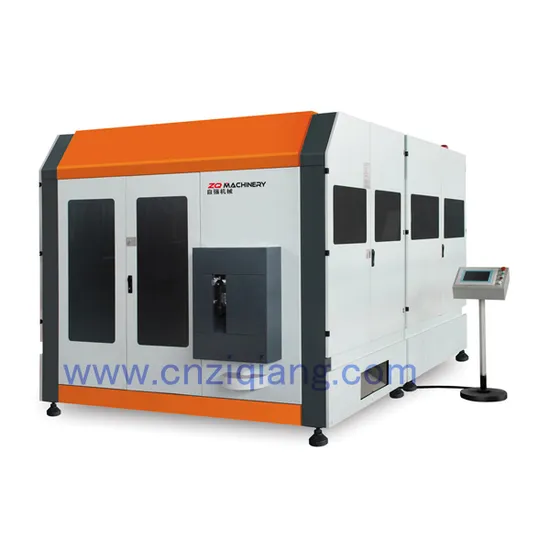

Rotary Pet Stretch Blowing Molding Machine (CE Approved ZQ-R10)

Product Description

Rotary Pet Stretch Blowing Molding Machine ZQ-R10
ZQ-R Series is the most stable two-step fully automatic pet stretch blow molding machine. It has four and ten cavities, and the maximum capacity of the products is 1.5L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
High capability/price ratio PET processing machinery are praised as reliable products by our customers. The automatic blowing machine series have powerful productivity but with very reasonalbe price
Rotary Pet Stretch Blowing Molding Machine,Features:
1. Rotary blowing method with high efficiency and output speed to reach 99.5% productivity
2. Siemens electric control system with quick action and high accuracy
3. German imported air-valve, cylinder, SEW brand motor and trequency-transfer applied to keep stable operation and stretch
4. Quick mould exchanging system makes mould changing easily
5. Professionally designed robot sends preform and takes bottle out automatically and accurately
6. PHILIPS infrared ray lamps with automatic feedback compensation applied in heating system for bearing of heat and keeping heating steady.
Rotary Pet Stretch Blowing Molding Machine,equipment information.

TYPE	UNIT	ZQ-R4	ZQ-R6	ZQ-R8	ZQ-R10
Speed	pcs/h	4000-5500	6600-9000	8800-12000	9000-13000
Bottle Volume	L	<=2.0L	<=2.0L	<=2.0L	<=2.0L
Cavity		4	6	8	10
Product Material		PET	PET	PET	PET
Max. Diameter of Product	mm	120	120	120	120
Max. Bottle Neck Diameter	mm	38	38	38	38
Max. Product Height	mm	350	350	350	350
Power Supply		380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ
Main Motor Power	KW	6	4	4	6
Oven Installation Power	KW	80	110	140	170
Elevator Power	KW	2	2	2	2
Blowing Air Pressure	Mpa	3.0-4.0	3.0-4.0	3.0-4.0	3.0-4.0
Blowing Air Flux	m3/min	8-12	8-16	8-16	16-24
Working Air Pressure	Mpa	1	1	1	1
Working Air Flux	m3/min	2	3.5	3.5	3.5
Dimension of machine	m	Machinery 3.2*2.4*2.2	Machinery 2.1*2.9*3.1	Machinery 2.1*2.9*3.1	Machinery 3.2*2.5*3.3
		Oven 3.0*2.1*2.2	Oven 3.5*0.9*2.6	Oven 3.5*0.9*2.6	Oven 5.0*2.2*3.3
Weight of machine	Ton	6	7.5	10	16
Eligible Rate		>=99.8%	>=99.8%	>=99.8%	>=99.8%

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
