Closed Cell EVA Foam Heat Laminatied PE Foam for High End Case Insert Foam

US$1.00
5-999 Pieces
US$0.01
1,000+ Pieces

Basic Info.

Model NO.
EVA foam
Certification
RoHS, ISO
Foam Type
Open Cell EVA Foam
Density
80-90kg/M3
Hardness Shore C
35-45
Tensile
160-450kpa
Elongation
>120%
Foam Shape
Sheet or Roll
Size
1000*2000mm
Thickness
1-100mm
Application
Packing, Automotive, Construction.
Material
EVA Foam
Transport Package
Plastic Bag in Cartons
Specification
ROHS. SGS
Trademark
Topsun
Origin
Changzhou. China
HS Code
3921199000
Production Capacity
5000000PCS/Month

Packaging & Delivery

Package Size
40.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

Product Description

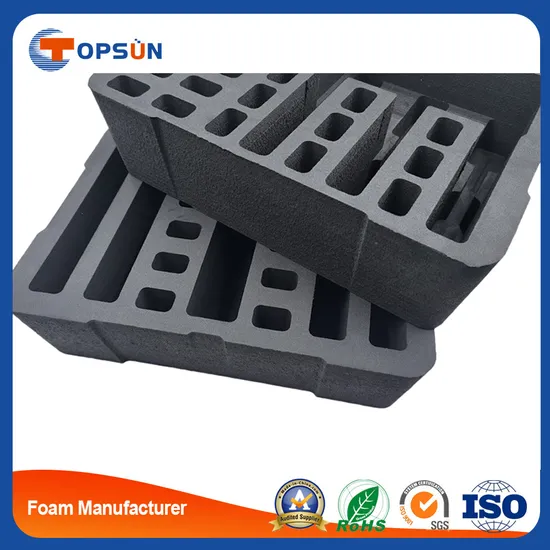

High Quality Closed cell EVA foam PE foam for cases insert:
Light weight,good elasticity
Weatherproof and waterproof
Flame retardant
Sound absorption
Heat isolation
Elastic and flexibility
Conductive
Certification: ROHS certificate,non-toxic
Adhesive : on back side or both sides
Detailed Photos
Item No Density (kg/m3) Hardness
(HC)
Tensile
(Kpa)
Elongation (%) Size(mm) in sheet
PE25 20-25 15±3 160 150 1000mm*2000mm,
1220mm*2440mm,
1500mm*2000mm,
1500mm*2500mm
One layer the max thickness 100mm, heat Lemination Max thickness 250mm
PE30 28-32 20±3 160 160
PE45 45-50 28±4 240 160
PE60 60-65 40±5 300 160
PE90 90-100 60±5 500 150
PE120 120-130 65±5 600 120
PE140 130-145 70±5 700 115
Application:
Product technology: according to the shape and size of the product, the use of cutting, die-cutting, carving, bonding and other processes, or the development of mold, through hot or cold pressing processing forming. Product performance: long-term use is not easy to deformation, cut flat, buffering, sealing, heat preservation, shock absorption, dustproof, filling, fixing and beautification functions for all walks of life.
Scope of application: used in electronic appliances, instruments, computers, home appliances, glass, precision instruments, toys, digital products, fragile packaging boxes, shock-absorbing lining, case packing, etc. Company Profile
Packaging & Shipping
Topsun, the Professional supplier for the Foams for the large used for Construction/Bluiding, Marine, Automotive, Insulation, Packing, Shoes and Footwear, Sport/GYM Production.... FAQ
Q: Do you manufacture your own foam?
A: Yes, we do manufacture the foam using our own presses and molds. We have various sizes molds.
Q: Why your price labeled so cheap?
A: We manufacture the foam buns our self, and export directly, no extra fees added.
Q: What is your lead time?
A: Ninety percent of all our orders can be loaded in 15 days.
Q: How much can you fit on a 40 HQ container?
A: Approximately 205 buns of 4" x 48" x 96"
Q: What is your minimum order?
A: We do not have a minimum order. However, small qty will be waste for the shipping costs.
Q:What are acceptable forms of payment?
A: We accept wire transfers, TT payment, Paypal, Western Union, LC etc.
Q: What densities are available?
A: We stock 1.5lb to 15lb densities.
Q: What colors are available?
A: Charcoal; Light Charcoal; Grey; Mint Green; Blue; White; Yellow; Red; Lavender; Lime Green; and Natural.
Q:Does your material come with skins?
A: Generally no, although some materials are available with skins upon request.
Q: What can be used to cut your foam?
A: Most tools that can be used to cut wood can also be used to cut our foam. These include table saws, band-saws, table routing, water-jet, etc.
Q: What is the working temperature of the foam?
A:Maximum continuous operating temperature of our foam is between -110°F to 180°F (-79°C to 82°C)
Q: What is the shelf life of the foam?
A: Crosslinked polyethylene foam does not have a shelf life.
Q: Does the foam float?
A: Yes, it does; XLPE is a water resistant foam.
Q: What are the differences between EVA and XLPE?
A: EVA is soft. Our XLPE and EVA foam products are similar materials and are difficult to distinguish.
The primary differences are that EVA is softer, more resilient, and has stronger recovery after compression. Whereas polyethylene foams are firmer and more resistant to heat.
Both of them provide excellent protection and shock absorption for packaging applications.
For more info, please feel free to contact us any time, 7 x 24 service !
