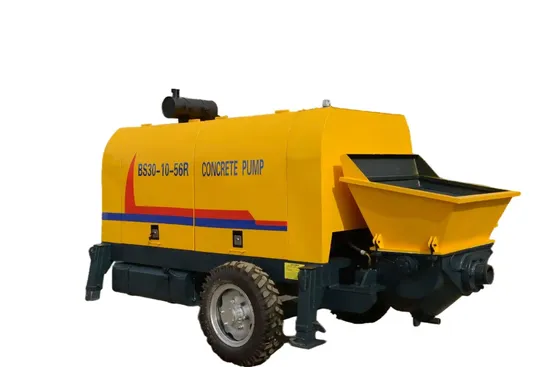

Concrete Conveying Pump Fine Stone Concrete Pump Trailer Pump Concrete Ground Pump

Product Description

Product Parameters

Fine aggregate concrete conveying pump
Project	Parameter	Project	Parameter
Pump model	hbt80	conveying height	30m
Power	diesel	Horizontal conveying distance	20m
pump size	2100*1300*1000mm	oil pump power	50L/S
Package size	2210*1410*1060mm	Theoretical conveying capacity	5-8m3/h
Mortar stone ratio	1:2:2	valve form	S-valve
Aggregate	Material diameter<30	Pipe diameter	Ф100mm
Cylinder diameter	Ф120/540	Usage	Mortar fine stone transportation
weight	800kg

Product Description
Applications:
1. Suitable for large-scale and efficient construction of fine aggregate concrete filling layer or mortar filling layer in underfloor heating engineering;
2. Suitable for the transportation of refractory and insulation materials in various engineering constructions;
3. Pressure grouting of various foundation piles; Tunnel over excavation and backfilling;
4. After installing spray accessories, it can be used as a spray pump.
Characteristics of conveying pump
1. The use of S-tube valve directional control can meet the transportation of fine aggregate concrete.
2. The eyeglass plate and cutting ring are made of high hardness and wear-resistant alloy material, which has a longer lifespan.
3. The export pressure is high, which can meet the transportation requirements of high-rise buildings and long-distance construction.
4. The hydraulic oil cooling adopts a forced air cooling system, which does not require a water source and is easy to use.
5. Equipped with anti pump function, it minimizes pipeline blockage to the greatest extent possible.
6. Equipped with an automatic centralized lubrication system to ensure the service life of rotating parts.
7. The electrical box is equipped with a wired remote control handle for easy operation.

Packaging & Shipping

Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.

SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
