Mixer Machine for Mixing Powder and Liquids for Food, Chemicals, and Pharmaceuticals

Product Description

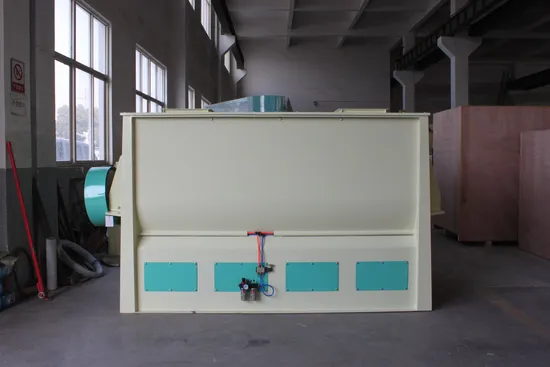

Single Shaft Screw Mixing Machine
Application: Feed, Chemical, Pharmaceutical, Pesticide And Other Industries
Capacity:1000KG/BATCH
Main Power:15KW The single-shaft screw mixer is a horizontal cylinder, and the inner rotor is composed of a ribbon spiral blade, a shaft, a ring and a support rod.
Technical Features Of SLHY Single Shaft Screw Mixing Machine 1.Under the feasibility factor, the mixing effect of the horizontal ribbon mixer is not affected by the size and density of the particles, and it has a good mixing effect for viscous materials.
2.The stable mixing process reduces the damage to the fragile materials, and the installation of the flying knife structure also plays a role of crushing.
3.the horizontal structure of the lower body height, easy to install.
4.In the stirring structure, the forward and reverse rotating spiral bars are installed on the same horizontal axis, forming a low-power and efficient mixing environment.
5.The horizontal ribbon mixer is mainly used for the production of putty powder, and can also be used as an entry-level thermal insulation mortar mixer.
Applications Of SLHY Single Shaft Screw Mixing Machine
The rotor of the single-axis spiral mixer is composed of two belt-type spirals with opposite driving directions. It has strong stirring ability, short time required for mixing materials, good mixing uniformity, large bottom door, pneumatic discharge, minimal residual Missing material.
Working Principle Of SLHY Single Shaft Screw Mixing Machine Single shaft screw mixer rotor is consist of two aspects pivot near the band or spiral, whose stirring time is short, strong stirring, high yield and high mixing uniformity, and it is ideal equipment for feed, dry powder and compound fertilizer factory.
The machine includes lid, rotor, casing, discharging device and other parts. Raw materials are premix materials are put into mixing room from upper inlet, rotor driven by reducer motor and composed of different directions ribbon screw blade and main shaft. When rotor working, left hand helix and right hand helix will make materials push in the opposite direction so that the materials can be mixed uniformly.

Model Specifications	SLHY0.12	SLHYO 2	SLHY0.5	SLHY1.0	SLHY2.5	SLHY5	SLHY7.5	SLHY10
Power(kw)	0.75	2.2	3.0	7.5	15	30	45	55
Production(kg/p)	50	100	250	500	1000	2000	3000	4000

Production line projects Production line business plan Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
Exibition
Factory Showcase

Packaging and Shipping

---
