JC 59U Unbalaced Chemical Mechanical Seals for The Pump

Product Description

Product Description
Working Conditions
Mediums: Petroleum,chemical solvents,weal and medium acids,etc.
Temperature: -40ºC~200ºC
Pressure: ≤1MPa
Speed: ≤20m/Sec
Combined Materials
Stationary Ring (Ceramic / Sic / TC)
Rotary Ring (Carbon / Sic / TC)
Secondary Seal (NBR / EPDM /Viton)
Spring and Punched Parts ( Steel )

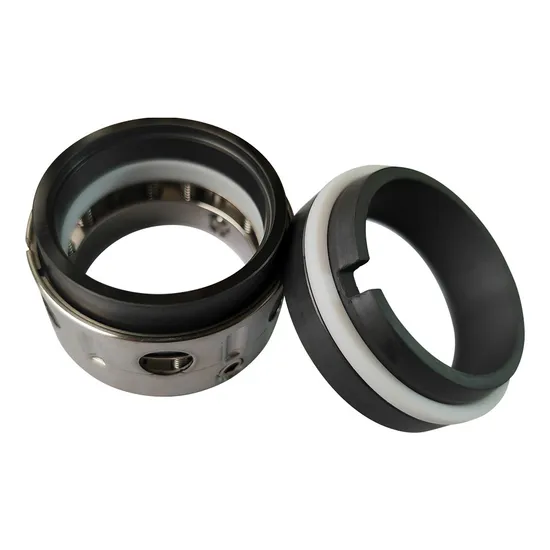

Detailed Photos

Product Parameters

Shaft Size D1	Size Code	D3	D7	L1	L4
16	0160	26.0	27.0	23.0	12.0
18	0180	32.0	33.0	24.0	13.5
20	0200	34.0	35.0	24.0	13.5
22	0220	36.0	37.0	24.0	13.5
24	0240	38.0	39.0	26.7	13.3
25	0250	39.0	40.0	27.0	13.0
28	0280	42.0	43.0	30.0	12.5
30	0300	44.0	45.0	30.5	12.0
32	0320	46.0	48.0	30.5	12.0
33	0330	47.0	48.0	30.5	12.0
35	0350	49.0	50.0	30.5	12.0
38	0380	54.0	56.0	32.0	13.0
40	0400	56.0	58.0	32.0	13.0
43	0430	59.0	61.0	32.0	13.0
45	0450	61.0	63.0	32.0	13.0
48	0480	64.0	66.0	32.0	13.0
50	0500	66.0	70.0	34.0	13.5
53	0530	69.0	73.0	34.0	13.5
55	0550	71.0	75.0	34.0	13.5
58	0580	78.0	78.0	39.0	13.5
60	0600	80.0	80.0	39.0	13.5
63	0630	83.0	83.0	39.0	13.5
65	0650	85.0	85.0	39.0	13.5
68	0680	88.0	90.0	39.0	13.5
70	0700	90.0	92.0	45.5	14.5
75	0750	95.0	97.0	45.5	14.5
80	0800	104.0	105.0	45.0	15.0
85	0850	109.0	110.0	45.0	15.0
90	0900	114.0	115.0	50.0	15.0
95	0950	119.0	120.0	50.0	15.0
100	1000	124.0	125.0	50.0	15.0

Our Advantages
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Packaging & Shipping

FAQ
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.
Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).

---
