Metal Sheet Tube and Plate Punch Press with Rexroth System with Metal Laser Cutting Function

Product Description

Product Overview
The CNC punching and cutting composite machine has both servo punch forming processing technology and the characteristics of high laser cutting efficiency and good cross-sectional quality.
The optional automatic tapping function can achieve punching, forming, scribing, lettering, rib rolling, laser cutting, and tapping.
It can provide a new intelligent manufacturing solution for your production. This composite machine includes a punch press mainframe, laser cutting system, and electrical components. The composite machine adopts a full German Rexroth CNC system, motor, and drive.

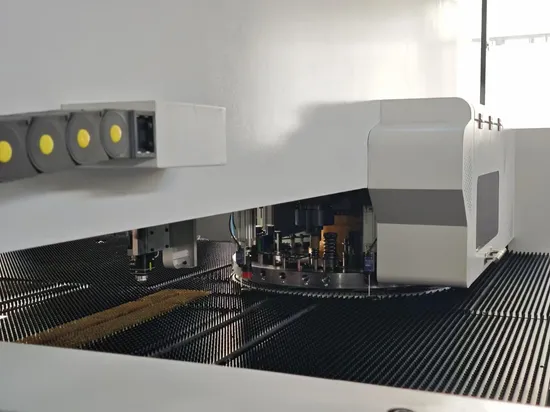

Detailed Photos
* Steel plate frame
* Tempering fireplace
* One-step clamping
* Thick rotating tower
* Extending mold life
* High accuracy
* International standard 85 series mould
* High surface hardness
* Strong anti-abrasion
* Tempering clamp slide
* Blackening of clamp surface
* Installing scales
* The special fibre laser cutting head, with stable and reliable performance, ensures the best cutting quality and achieves high cutting speed.
* Non-contact capacitive sensor to ensure stable cutting follower gap, ensuring a very good cutting effect.


Product Parameters

NO.		Specification/Model	quantity	Remarks
CNC punching and cutting compound machine		ERL300	1	¨28¨ 32 workstations
Laser cutting systems	systems	Rexroth Indraworks	1
	lasers	Chuangxin Maxphotonics-1500W/3000W	1
	cutting head	Ka Keung Empower BM110	211
	chiller	Hanli HL-3000	1
	air compressor	11kw	1	optional
Unloading device		Custom sizes	1	optional

CNC Punch Press Parameters:

NO.	Name		parameter	unit	Remarks
1	punch force		300 (30)	KN (T)	Optional 400 (40)
2	machine structure		"O" closed type		Fireplace Tempering
3	Maximum sheet size		X-axis 2500	mm	X-axis secondary positioning 5000mm
			Y-axis¨ 1250¨ 1500	mm
4	Maximum plate thickness		6.35	mm
5	Maximum diameter of one punch		Φ88.9	mm	Non-standard customisation
6	Punching frequency		2300	hpm
7	Maximum punching frequency (6mm stroke in 1mm steps)		900	hpm
8	Maximum punching frequency (6mm stroke in 25mm steps)		400	hpm
10	Mould form		Long guide 85 series international standard mould
11	Turret station distribution ¨28¨ 32 workstations		¨12A, 10B, 4C, 2D (2B, 2C Auto-index) ¨16A, 11B, 3C, 2D (1B, 1C Auto-index)	standard equipment	Non-standard customisation
12	Number of clamps		3	PCS
13	Repositioning cylinders		2	SET
14	Number of control axes		6/7	PCS	Non-standard customised Y-axis cutting head movement
15	Maximum speed of plate movement		106	m/min
16	Table structure		Brush/Universal Steel Ball Composite Countertop
17	Maximum feed speed	X-axis	90	m/min
		Y-axis	80	m/min
		X, Y linkage	110	m/min
18	Turret speed		30	rpm
19	Machining precision		±0.10	mm
20	Maximum load capacity		156	Kg
21	Clamp Blind Zone Detection		√
22	Alarm device for loose clamp plates				optional
23	Anti-Warping Test for Panels		√
24	air pressure		0.6	MPa
25	power supply		380±5%	V
26	Weight		¨15¨ 17	T
27	Overall dimensions (L x W x H)		¨5200¨ 5500x5200x2280	mm	Bed colours available in red and white or custom colours

Product category


Company Photos
Certifications

FAQ
1. How about the delivery time?
Generally, it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose a suitable machine?
Please advise us on the material/ thickness/ dimension of the metal sheet, and the punched drawing.

---
