Reliable Engineering Machinery (ZID - 230E) Hand - Held 2300W Concrete Vibrator

Product Description

Engineering Machinery (ZID-230E) Hand-Held 2300W Concrete Vibrator

PRODUCT USE

1,Construction Sites: Concrete vibrators are widely used in construction sites for pouring and compacting concrete. They ensure uniform distribution of concrete, eliminate air bubbles and voids, and enhance the density and strength of the concrete. Common applications include the construction of floors, walls, and columns in concrete structures.
2,Foundation Engineering: Concrete vibrators play a crucial role in foundation engineering. They are used to compact the soil and pour concrete piles. By applying vibrations, concrete vibrators ensure that the concrete fills the pile holes completely, improving the load-bearing capacity and stability of the piles.
3,Bridge and Road Construction: Concrete vibrators are also extensively used in bridge and road construction. They are employed to compact bridge piers and roadbeds, ensuring uniform density of concrete structures and enhancing the stability and durability of bridges and roads. Concrete vibrators can also be used for compacting road surface repairs and patches, improving the smoothness and quality of the roads.

Product Description

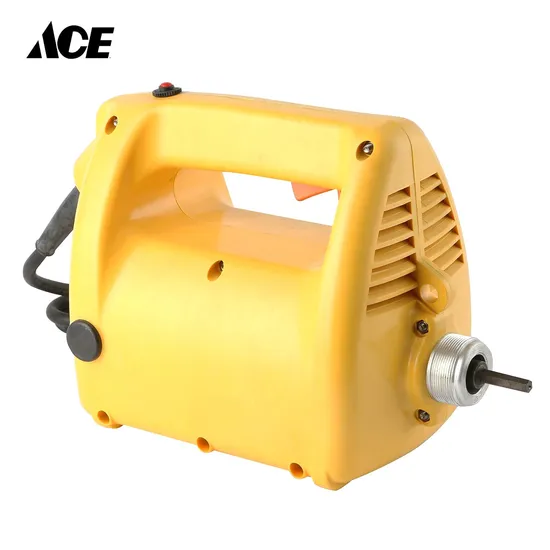

1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.
Technical Specification

Model	ZID-150E	ZID-230E	ZID-230C	ZID-200	PD-230
Power (W)	1500	2300	2300	2000	2300
Voltage (V)	220-230	220-230	220-230	220-230	220-230
Speed (rpm)	17000	17000	17000	17000	17000
Packing Size (cm)	45*36*29.5	45*36-29.5	44*36*28.5	44*36*28.5	44*36*28.5
Weight (kg)	5.3	5.5	6.2	5.9	6.0

Match concrete vibrator shaft:

Item	High-frequency vibrator shaft
Model	¢(mm)	ZX-35	ZX-38	ZX-45
Diameter of head	¢(mm)	35	38	45
Length of head	L (mm)	330	380	390
Vibrating Frequency	(HZ)	200	200	200
Vibrating Ampitude	(mm)	0.91	1.1	1.2
Diameter of flexiable hose	D(mm)	30	30	30
Diameter of flexiable shaft	D(mm)	10	10	10
packing size	cm	75*75*5.5cm

Package
FACTORY

SAMPLE ROOM

Hot Products

Excavator	Surface Finishing Screed	Concrete Vibrator	Power Trowel
Remote Control Trowel	Concrete Mixer	Plate Compactor	Compactor Machine
Drywall Sander	Steel Bar Cutter	Vibratory Roller	Steel Bar Bender

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
