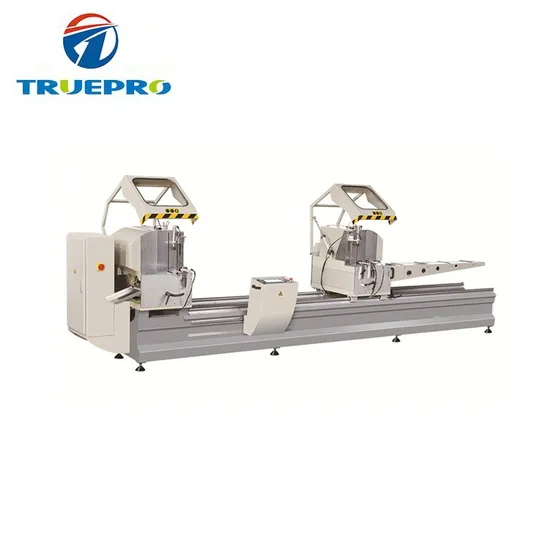

Double Head CNC Mitre Cutting Saw for Aluminum Window Door

Product Description

Double head CNC mitre cutting saw for aluminum window and door
Machine feature:
1. For cutting Aluminum profile.
2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Carbide saw blade is of accurate processing and high efficiency.
9. Two heads can work together or single, when together work, one time can cut off the required length and angle.
Parameter:

Power supply	3N~50Hz 380/220V or As Customer Specification
Cutting motor power	5.9KW
Cutting motor rotary speed	2800r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	ø500×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Max. cutting length	4200 mm
Min. cutting length	400 mm
Cutting width	max 135mm
Cutting height	900 : max 300mm 450: max 200mm
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5700 mm×1650mm×1500mm
Weight	1850KGS

Machine details:
Our Service Pre-sale serviceFree contact for the most suitable machine
Free professional design for each customer especially. After sale service24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff. PaymentL/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
****** trade assurance , which will protect your money in safe and ensure our quality.
FAQ:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine

---
