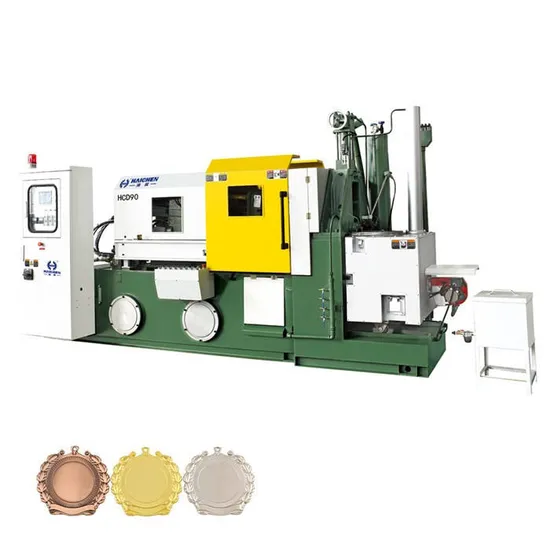

Haichen Zinc Alloy Round Metal Medal Hot Chamber Die Casting Machine

Product Description

Haichen zinc alloy round metal medal hot chamber die casting machine



blank metal medal blanks sampls:

medal metal diameter: 70-75mm,

medal metal weight: 50g

medal metal Material: zinc alloy



The machine is applicable to die casting of non-ferrous metals with low melting point such as Zn(Zinc) and Pb(Plumbum).It is widely used in various industries including automobil and motorcycle parts,meters and instruments,daily-use hardware,and household appliances.
This machine is suitable for industry departments of automobile and motorbike fittings,apparatus,meter,miscellaneous hardware,household appliances,etc.

Haichen hot chamber machine technical data

INTERNATIONAL CLASS NO		HCC 90T
Clamping Force	kN	900
Clamping Stroke	mm	280
Die-thickness(Min.Max)	mm	150-360
Platen size(H*V)	mm	560
Space between Tie-bais	mm	360x360
Diameter of Bars	mm	35
Casting Force	kN	100
Casting Stroke	mm	285
Injection Plunger Diameter	mm	30/40
Max.Casting Volume(AL)	kg	0.4/0.7
Casting Pressure (Min-Max)	MPa	141.5/79.6
Cast projection Area	cm²	62-110
Injection Position	mm	0,-80
Ejector Space	mm	80
Extruding Flange Diameter	mm	85
Heigh of Extruding Flange Pattern	mm	10
Ejection Force	kN	60
Ejection Stroke	mm	60
System Working Pressure	MPa	16
Motor Power	KW	11
Tank Capacity	L	320
Machine Weight	kg	3800
Overall Dimensions of Machine(L*W*H)	mm	4430x1210x1840

All above technical parameters are subject to change without prior notice.



We always work hard to produce the high performance/price ratio die casting machines

• Multi-stage pressure and speed control to mode-locked opening,it is equipped with low pressure locking protection function.
• Hydraulic friver gear die regulating device.
• Cenral electric lubrication system.
• Rapid hydraulic ejecting device and core puller.
• Injections of two sections of pressure and speed control,high-speed injection of piston type accumlator.
• German and Japanese famous brands hydraulic elements.
• Advanced injection system can stabilize the injection speed effectively,and the air injection speed can reach 4m/s.
• Furnace uses digital temperature control to control the temperature of the alloy material precisely to avoid the condition that temperature is too high or too low,which improve the quality of die cast parts.
• Hotkey of nozzle and gooseneck uses steel materials with high temperature and hot working,to make sure their wearing life is long.




PLC CONTROLLED UNIT
PLC with LCD Touch Screen provides function as parameter setrtings and production monitoring.Machine adopts the world famous brand electrical components to ensure stable,safe and reliable performance.

CLAMPING UNIT
High strength and wear resistant casting platens and toggles.toggle system adopts double link tie bar guidance,achieves the effect of rapid,strong,durable and stable.Hydarlic driven gear type die thickness adjusting device makes the operation quickly and guarantees the accuracy.

HYDRAULIC SYSTEM
oil hydralic system adopts proportional controlled system pressure and flow,achieves multi-stage pressure& speed control,and low pressure die clamping function.European or japanese famous valve and oil seals ensure quality and durability;The well-known brands improve the performance.The high-low double pump or single pump with low noise save energy and improve production efficiency.

INJECTION UNIT
2 stages Injection controls with piston type accumulator and high flow cartridge valve achieves high speed operation & stable injection.All hot parts are made of high-quality steel to ensure stable operation in the environment of high temperature,high pressure and high speed.

about us



Ningbo Haichen Machineryco.,Ltd is located in Ningbo,Zhejiang province.The company has more than 5,000 square meters of standard factory buildings,with several large machining centers and advances machining equipment.The company has advanced management,strong technical strength,with capabilities of research,development and manufacture of high-precision die casting equipment.

the company's research and development of products is adhering to the strategy of high starting point and high quality.All die casting machines have to undergo a rigorous inspection and testing before delivery,which makes the quality of the machine to be in a leading position in the industry.the company has "HAICHEN" full computer controled of two series over 20 varieties of hot and cold chamber die casting machine products.which is sold throughout the country and exportedto the Middle East,Europe,America,Southeast Asia and other regions.The company has been adhering to the business philosophy of "Homest hehave,honest business"to absorb large number of elite to join him by his broad space for development,and provide strong technical support for the development of a full range of high-precision die-casting machine.

The unlimied increasing of the added value of users is our eternal pursuing goal.The company has been committed to prodivde users with high-effective,high-quality ,cost-effective,optimal mechanical equipment to users to continuously improve productivity,reduce costs,and ultimately enhance the users market competition capacity.The fast reaction and great care of pre-sales,sales,after-sales service is strong guarantee for us to meet and exceed customer demand ceaselessly,and the potential of hone as well as accumulation of experience,all for users.Warmly welcome all huests loyal customers and talents to the East China Sea.

---
