Spindle Bore 82mm Gap Bed Lathe Machine CS6250B Horiontal Lathe Machine

Product Description

Product Description

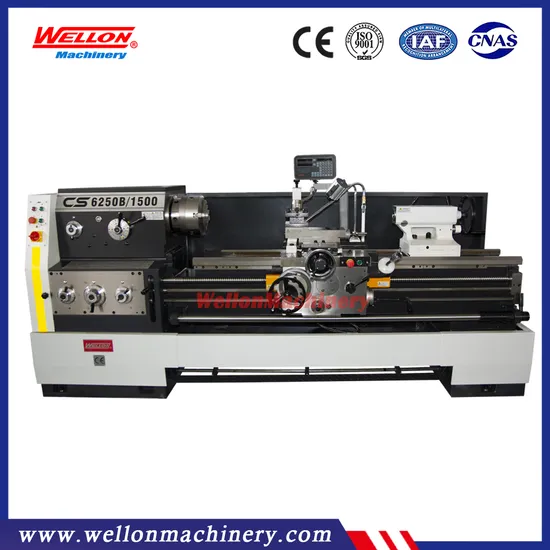

High precision Big Bore Gap Bed Lathe Machine CS6250B
Detailed Photos
Product Parameters

Performence Features:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter:

SPECIFICATIONS		UNIT	CS6250B
Capacity	Max. swing dia. over bed	mm	500
	Max. swing dia.in gap	mm	710
	Max. swing dia. over slides	mm	300
	Max. workpiece length	mm	1000/1500/2000/3000
	Bed width	mm	400
Spindle	Spindle bore diameter	mm	82
	Type of spindle nose	no	ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps 9-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.028-6.43
	Z feed range	mm/r	93 kinds 0.012-2.73
	Metric threads	mm	48 kinds 0.5-224
	Inch threads	t.p.i	48 kinds 72-1/4
	Module threads	πmm	42 kinds 0.5-112
	Diametricpitch threads	t.p.i.π	42 kinds 56-1/4
Others	Length	mm	2632/3132/3632/4632
	Width	mm	975
	Height	mm	1270
	Weight	kg	2100/2300/2500/2900

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Chuck guard
Tool post guard
Some tools
Optional accessories:
Chuck guard
Tool post guard
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
