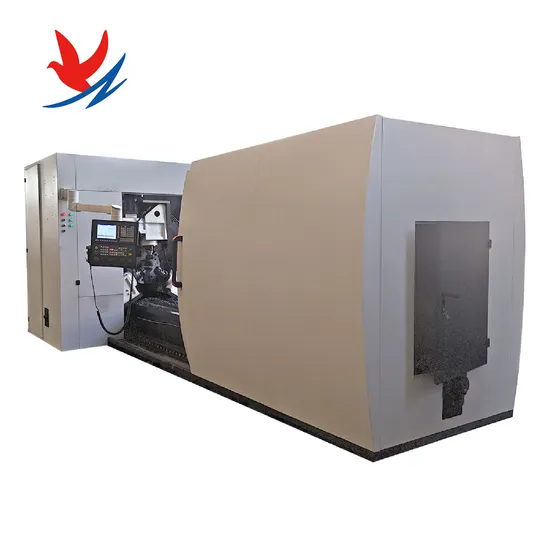

3 Rails CNC Screw Milling Machine Can Be Equipped with Siemens Operating System

Product Description

screw milling machine screw milling machine milling machine special screw milling machine

Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province, the company is located only three kilometers away from the Nanpi exit of Beijing-Shanghai high-way, the traffic is very convenient. The company set r & D, design, production, sales, service in one, not only has a high-quality staff, but also has a strong product research and development team, after r & D improvement, our company now has a series of special CNC machine tools for processing spiral workpiece.Machine stable performance, high technology content, and a number of well-known enterprises to maintain long-term cooperation.
Introduction to machine tools
LXK350 type (external type) CNC screw milling machine is our company's own research and development of a series of screw processing machine bed in the leading variety, the product is designed for the processing of equal lead, variable lead, gradual lead, equal groove depth, variable groove depth and other special-purpose screw machine. LXK350 CNC screw milling machine has the following characteristics: 1, the overall bed design, four guide rail layout, guide rail surface high-frequency quenching, good rigidity, high precision. 2, the milling head adopts high power frequency conversion motor, which can make the milling cutter realize stepless variable speed and wide speed range. The milling head can be manually adjusted according to the requirements of the workpiece. The milling head can go up and down. 3, X axis and Z axis reciprocating motion using ball screw to achieve high repeatable positioning accuracy. 4, C axis drive for worm gear and worm structure, smooth transmission, accurate indexing. 5, the saddle is dovetail guide rail, high position accuracy, good fast speed. 6, the spindle bearing is lubricated by oil, low temperature rise, high durability, and no daily lubrication maintenance. 7, the machine tail seat is mechanical, flexible and reliable. 8, the machine is equipped with a wide range of control system. 9, the machine is equipped with chip discharging machine, the iron filings generated in the milling process directly into the chip discharging machine, to ensure the clean working environment. 10. The electrical components in the machine tool electrical control cabinet are delixi brand.

Bed width	mm	800
The length of the lathe bed	mm	7700
Bed guide rail		Mountain track + horizontal track
Maximum workpiece length	mm	6000
maximum machining length	mm	5800
Maximum milling diameter	mm	Φ350
Center height of machine tool Center height of machine tool	mm	500
Chuck specification		K11-400C
Milling head motor power	Kw	11 (frequency)
Mill head transmission ratio		1:3.3
Milling cutter speed rating	r/min	400
Spindle mounting taper of milling head		7:24(Φ69.85)
Milling head down adjustment range Milling head down adjustment range	mm	-5~+10
Milling head adjustable Angle	degree	±30
C-axis servo motor torque	N.m	22
C shaft speed	r/min	0-5
C axis drive form		Worm gear and worm
C axis transmission ratio		1:300
C axis positioning accuracy	second of arc	10
X axis servo motor torque	N.m	15
X axis drive form		Ball screw and synchronous wheel
X axis guide rail pair type		55°
X axis ball screw specifications		4005
X axis positioning accuracy	mm	0.02

FAQ:
Q1, How do I send my query?
You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype).
Q2,If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you.
Q3,delivery time
The project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period.
Q4,Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q5,Can your engineers come to help us install and debug the machine?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q6, If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
Q7,Is there only one model of this device?
The standard processing diameter range of this equipment is 350mm, if you have other processing range, you can negotiate with the sales contact. Length range, we can do from 1000mm to 8000mm, and all are integral cast bed. 8. What control system does the equipment use
Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details.
Q9,What control system does the equipment use
Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details.

---
