Waste Bottle Scrap LDPE Plastic Recycling Washing Production Line

Product Description

Product Parameters
PE/PP/ABS/PS (RIGID FORM )Bottle, Bucket, Hollow Container Recycling Machine
This RIGID PE PP PLASTIC WASHING LINE is used to recycling the waste HDPE/LDPE/PP bottles and buckets, hollow container and so on.

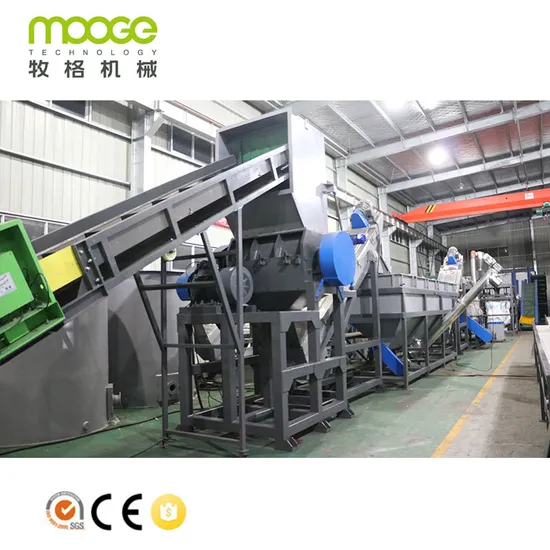

The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction
washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system.
The waste dirty rigid PE PP bottles/buckets go through crushing, washing, drying, collecting process will turn to be clean flakes for further pelletizing.
We also can customized the line components according to your special requirement.
We have the rigid PE PP bottle bucket washing line with capacity from 300 kg/h to 2000 kg/h for your optional choice.
We can design the layout into "L" or "U" shape according to your requirements.
Product Specification
Standard System(with 1 set washing tank)
We can design the layout according to your requirements.

Model	Capacity	Installed Power	Water Supply	Area Required :m
MEB-300	300kg/hr	100KW	4-5m³/hr	20*4.5*5
MEB-500	500kg/hr	115KW	5-6m³/hr	20*4.5*5
MEB-1000	1000kg/hr	125KW	7-8m³/hr	23*5*5
MEB-1500	1500kg/hr	180KW	8-10m³/hr	25*5*5
MEB-2000	2000kg/hr	225KW	10-15m³/hr	28*5*5

Advanced System (with 2 set washing tank)
we can design the layout according to your requirements.

Model	Capacity	Installed Power	Water Supply	Area Required:m
MEB-300	300kg/hr	130KW	5-6m³/hr	38*4.5*5
MEB-500	500kg/hr	145KW	7-8m³/hr	38*4.5*5
MEB-1000	1000kg/hr	190KW	8-10m³/hr	42*5*5
MEB-1500	1500kg/hr	230KW	10-15m³/hr	45*5*5
MEB-2000	2000kg/hr	280KW	15-20m³/hr	45*5*5

Detailed Photos
Plastic Crusher Machine
-Function: Crushing the PE PP bottles/ buckets into small flakes. -With water inlet do wet crushing. -The rotary and fixed blades inside the crusher are more wider, it will save the blades cost. -Use the big roller bearing ensure durable use. -Bearing house is installed outside of the crusher chamber so no dirty goes inside.
Friction Washing Loader
-Function: Friction washing the bottle flakes with water and loading up it.
-Up and down both mounted with bearing design ensure the low maintenance and long use life.
-With water injection system to cleaning the screen.
-Bottom with water drain system. -The machine part contact with water made by SUS 304.
Floating Washing Tank
-Function: Floating washing separate the sand, soil and other dirty. -The roller is specially made can have more washing for flakes but less water take out
-Bottom with positive and negative screw to push the dirty into the middle for easily drain out
-The machine part contact with water made by SUS 304
Horizontal Dewatering Machine
-Function: Take out dirty and remover water. -With high rotary speed reach up to 1500 rpm.
-With the roller bearing and fixed outside of the rotor for long use life.
-Inside with mesh layer, mesh made by SUS 304 with the diameter 3 mm.
-With water spray system to clean the mesh.
Hot Air Drying System
-Function: Further drying the bottle flakes with hot air.
-Heating by electricity, with one set of heating box. -With one set of blower fan to transmit the flakes through the pipe.
-The pipe is made by 304 stainless steel.
-The pipe with bigger and more thickness elbow for longer use.
Company Profile
Certifications
FAQ
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc. • In-sales: we supply the details layout, installation instruction, and technician support for the clients. • After sales: we arrange engineer to install the machine and train the workers for our client. • We have 24 hours service line to solve the after sales problem. • We have free spare parts with the machine. • We supply long term spare parts for every customer. • We always update the new technology to every customer. In order to match your requirement and provide you a proper quotation, please advise: • What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic? • What capacity(kg/h) do you want? • What is the final size(mm) of flakes you want? • Other special requirements about the PE film PP bags plastic recycling machine?

---
