Josen Fgm-306ahd Type, Heavy Cutting, Fully Automatic Surface Grinder Low Prices

Product Description

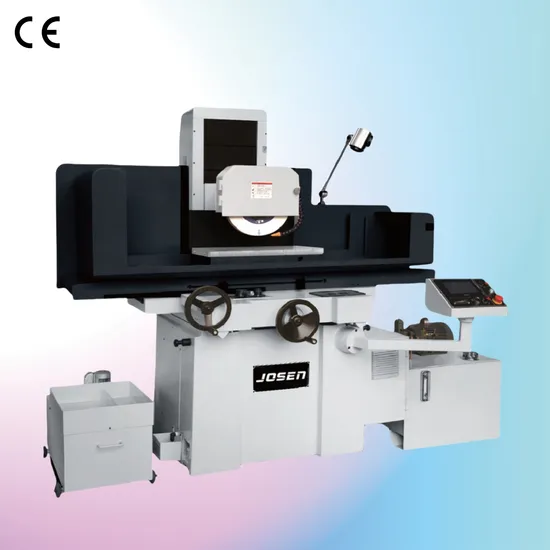

JOSEN FGM-306AHD Type,heavy cutting, Fully Automatic Surface Grinder
Product Description
Basic Info

Serial number	Product Name	Quantity	Serial number	Product Name	Quantity
1	Grinding wheel (white steel jade, 350*40*127)	1 piece	2	Grinding wheel flange	1 piece
3	Grinding wheel repair pen and base	1 set	4	Grinding wheel balancing frame	1 piece
5	Grinding wheel balancing bar	1 piece	6	Work light	1 piece
7	Leveling mats	1 set	8	Flushing system	1 set
9	Tools and Toolbox	1 set	10	Ordinary electromagnetic suction cup (300*600)	1 table

Product Specification

Technical parameters (TECHNICAL PARAMETERS)			Unit(unit)	FGM-306AHD
Processing capacity	Table size		mm	600*300
	Maximum grinding length		mm	660
	Maximum grinding width		mm	340
	Maximum distance spindle to table		mm	540
	Maximum table bear the weight(including disk)		kgs	420
Table	Table T-slot		mm*N	14*1
	Table speed		m/min	5-25
	Front and rear handwheel feed	One cell (A grid)	mm	0.02
		One lap (Lap)	mm	5
	Front and rear automatic feed		mm	0.1-10
	Front and rear fast movement	50Hz	mm	790
		60Hz	mm	950
Grinding wheel	Grinding wheel size		mm	350*40*127
	Spindle speed	50Hz	R.pm	1450
		60Hz	R.pm	1740
Upper and lower structure (The vertical structure)	The maxmum amount of movement		mm	380
	On the handwheel infeed	One cell (A grid) A rotary (A rotary)	mm	0.002
			mm	0.5/0.2/0.2
	Automatic feed rate		mm	0.002-0.04/0.002-0.04
	Fast moving up and down volume		mm/min	230/180/180
Motor	Spindle motor		HP	5*4
	Vertical drive motor		HP	90W/stepping 6N.M Servo 400W
	Hydraulic motor		HP	2*4
	Vacuum motor		HP
	Motor flush		Hp	1/8*2
	Backward driviing motor		HP	40w/40w/stepping 8N.M
Size(Packing size)	Machine height		mm	1865
	Covers an area of		mm	3050*2200
	Net weight		Kg	2000
	Gross weight		Kg	2200

the main parts and suppliers:
(1) Spindle motor Tomita / Datong
(2) Ball screw AHK
(3) Servo motor and servo driver Hogawa
(4) Main electrical components Tend / Taian
(5) Centralized lubrication system Shengxiang
(6) Magnetic controller Chen Ming
(7) PLC controller Hogawa
(8) Electromagnetic suction cups Wick
(9) Spindle assembly Fengbao

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile
Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
