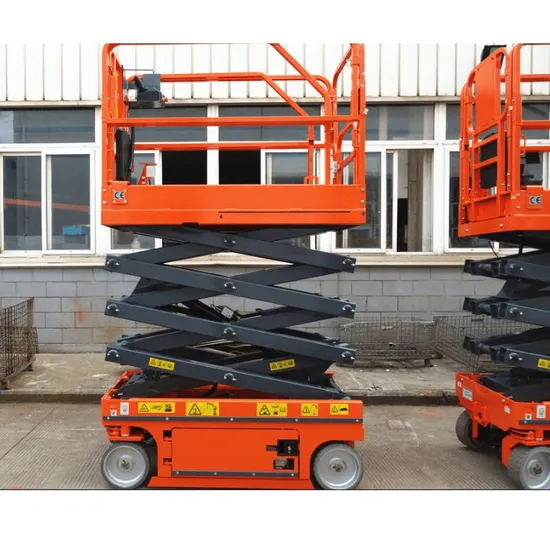

Electric lifting platform car is a multi-functional lifting and unloading machinery equipment, electric lifting platform lifting system, is driven by hydraulic pressure. Shear fork mechanical mechanism, the lifting platform has high stability, wide operating platform and high carrying capacity, so that the scope of high-altitude operation is larger, and suitable for many people to work at the same time. It makes high-altitude work more efficient and safer
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
| No. | Name | Material |
| 1 | table | 3mm plate bending |
| 2 | fork support | 160*100*3.75mm Q345 |
| 3 | base frame | 160*80*5.75mm Q345 |
| 4 | rails | 5mm plate bending rail, using nylon slider to do the guide wheel, large contact surface, smooth lifting, small shaking. |
| 5 | oil cylinder | HSG90/60 4; The seal ring adopts imported brand, durable and does not leak. |
| 6 | hydraulic tubing | 2-10-43mpa double steel mesh high pressure tubing |
| 7 | Pump station | Anshan Lisheng production lifting platform special hydraulic pump station. Equipped with emergency descent valve, the platform power can be manually controlled descent; Built-in overflow valve, can prevent the upward movement of the system pressure is too high, play overload protection function |
| 8 | Power and voltage | 3.0KW / 380V |
| 9 | tires | 700-9 pneumatic tires 4 sets |
| 10 | legs | 160*80*3.75mm Q235 |
| 11 | distribution box | delixi brand |
| 12 | control form upper and lower control. | The control part is equipped with emergency safety stop to maximize the protection of property and personal safety.Use 36V safety control voltage for each operating part |
| 13 | travel switch | Shanghai ASEAN brand |
| 14 | pin | 45# round steel to make, cook black processing. Add sF-2 oil-free self-lubricating bearings between pins of each shaft. |
| 15 | Hydraulic oil | 46# Great Wall anti-wear hydraulic oil |
| 16 | lifting speed | 4-6 m/min, adjustable descending speed |
| 17 | derusting treatment | shot blasting,sand blasting derusting treatment; Removing the rust and spatter on the surface of the steel structure member can make the surface of the steel member uneven to a certain extent and increase the adhesion of the powder |
| 18 | Spraying treatment | using electrostatic powder spraying;The coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, durable and does not fade. |
