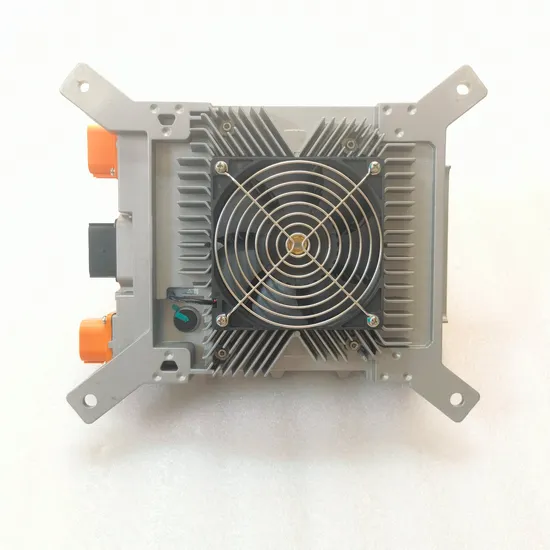

Board High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger

Product Description

Product DescriptionBoard High Voltage Truck EV Onboard Fan-Cooled AC DC 72V Lifopo4 Automotive on-Board 3.3 Kw Car 6kw 3.3kw 144V Battery Charger Deligreen Charger NEW VERSION --- HK-M series 3.3KW charger / HK-L series 6.6KW charger is a product specially designed for electric vehicle power battery supplementary electric energy according to the national standard of charger. This product not only has the advantages of high efficiency, small size, high stability, long life, etc., but also has the characteristics of high protection level, high reliability, and complete protection functions. It is an ideal power source for electric vehicle charging.Features :
1.Support UDS diagnosis CAN wake-up function
2.Fully sealed process can work reliably under the conditions of -40ºC-+85ºC
3.Built-intemperature sensor to shut down output under hazardous operating conditions (internal 90°C)
4. Protection class IP67 Can work ,safely under short-term water immersion conditions

Models	Cooling Method	Voltage Platform	Hardware	Power	Weight(kg)
HK-MF-48-40	Air cooling	48V	48V/40A	3.3KW	4.6kg
HK-MF-72-40	Air cooling	72V	72V/40A	3.3KW	4.6kg
HK-MF-108-32	Air cooling	108V	108V/32A	3.3KW	4.6kg
HK-MF-144-23	Air cooling	144V	144V/23A	3.3KW	4.6kg
HK-MF-312-10	Air cooling	312V	312V/10A	3.3KW	4.6kg
HK-LF-108-60	Air cooling	108V	177V/60A	6.6KW	8.5kg
HK-LF-144-46	Air cooling	144V	202V/46A	6.6KW	8.5kg
HK-LF-312-20	Air cooling	312V	450V/20A	6.6KW	8.5kg
HK-LF-540-14	Air cooling	540V	680V/14A	6.6KW	8.5kg

Product ParametersHK-M series 3.3KW charger :

Voltage Platform		48V	72V	96V/108V	144V
Output	Output voltage range	30~66V	50-99V	65~140V	90~195V
	Output current	40A	40A	32A	23A
	Output power	3300W@220VAC 1600W@110VAC
	Output Mode	CC / CV
	CV Accuracy	±1%
	CC Accuracy	±2%
	Ripple Voltage Coefficient	5%
Input	Input voltage range	AC 90~265V
	Frequency	45-65Hz
	Input current	16A
	Power factor	≥0.99 more than half load
	Effecificency	≥93% full -load
	Stand-by Consumption	≤5W
Low Voltage Output	Output Mode	Constant Voltage
	Output Voltage	13.8V
	Rated Current	5A
	CV Accuracy	±2%
	Output Power	≥62.5W
	Ripple Voltage Coefficient	1%

HK-L series 6.6KW charger :

Voltage Platform		96V/108V	144V	312V	540V
Output	Output voltage range	65~140V	90~195V	250~450V	350~680V
	Output current	60A	46A	20A	14A
	Output power	6600W@220VAC 3300W@110VAC
	Output Mode	CV / CC
	CV Accuracy	±1%
	CC Accuracy	±2%
	Ripple Voltage Coefficient	5%
Input	Input voltage range	AC 90~264V
	Frequency	45-65Hz
	Input current	32A
	Power factor	≥0.98 more than half load
	Effecificency	≥93% full -load
	Stand-by Consumption	≤5W
Low Voltage Output	Output Mode	Constant Voltage
	Output Voltage	13.8V
	Rated Current	5A
	CV Accuracy	±2%
	Output Power	≥62.5W
	Ripple Voltage Coefficient	1%

Efficiency Curve :Packaging & ShippingDeligreen new version HK-MF HK-LF series 48v 40a 1.8kw 3.3kw 6.6kw 60V 72V 96V EV on board battery charger
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided .
Company ProfileChangsha Deligreen Power Co.,Ltd
Deligreen sales department is a young , fancy and hard working team.
1. 5-year verified Golden supplier 2. One-stop service: battery+BMS+active balancer+charger+EV cable.Make DIY batteries easier! 3.Quick delivery: Warehouse in Shenzhen,USA, Poland, Russia.4. Honest, professional ,communicative and supportive sales consultant. Customer Reviews
Contact UsQuality is our Culture, we believe that the quality is the soul of an enterprise !!! With us your money in safe your business in safe !!! If you have any interested in them ,welcome to contact us here !!!

---
