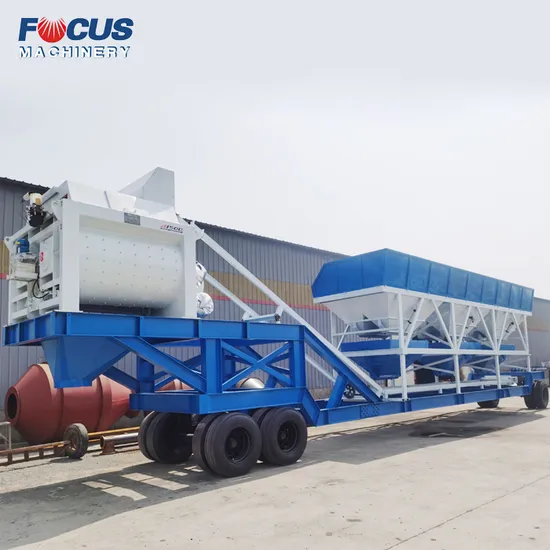

75m3/H Mobile Automatic Portable Mini Concrete Batching Plant Manufacturer

Product Description

75m3/H Mobile Automatic Portable Mini Concrete Batching Plant Manufacturer
Product Description
portable concrete batch plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.
Detailed Photos
Adopt double shaft concrete mixer, the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.
Adopt PLD series dosing machine, 2-4 bins are optional, and automatic unloading. Electronic weighing with an accuracy of 2%.
Smooth operation, automation, centralized control, continuous transportation and other advantages. Excellent material selection, using double-layer structure bucket belt and herringbone belt to choose from (Can be made according to the actual needs of customers).
Remote management, intelligent control, equipment with alarm correction, operation monitoring and other functions.
LSY219, LSY273 and LSY325 screw conveyors can be made according to the needs of the site.
The main structure is made of O235 high-quality carbon steel, which has good toughness, strong bearing capacity, corrosion resistance and is not easy to break.
Product Parameters

Model	YHZS25	YHZS35	YHZS50	YHZS75
Capacity	25m3/h	35m3/h	50m3/h	75m3/h
Mixer Model	JS500	JS750	JS1000	JS1500
Mixer Power	18.5Kw	30Kw	37Kw	2*30Kw
Discharge Height	1500-3800mm
Discharge Volume	500L	750L	1000L	1500L
Charging Volume	800L	1200L	1600L	2400L
Mixing Cycle	60S
Max. Agg. Size	80/60mm
Loading Way	Belt conveyor
No. of Storage Hopper	3	3	4	4
Agg. Silo Capacity	4m3	4m3	5m3	5m3
Agg. Weighing Accuracy	2000Kg±2%	2000Kg±2%	4000Kg±2%	4000Kg±2%
Water Weighing Accuracy	200Kg±1%	200Kg±1%	250Kg±1%	300Kg±1%
Cement Weighing Accuracy	250Kg±1%	300Kg±1%	500Kg±1%	600Kg±1%
Additive Weighing Accuracy	25Kg±1%	25Kg±1%	30Kg±1%	30Kg±1%
No. Of Wheels	2	2	2	2
Dragging Way	360 Degree bayonet	360 Degree bayonet	360 Degree bayonet	360 Degree bayonet
Control System	Fully automatic/Manual
Total Power	51KW	75KW	105KW	145KW
Total Weight	22t	28t	32t	35t

Install and run

---
