CNC Milling Machine Center with Siemens Control Good for Education Purpose

Product Description

1. Production introduce and use
The vertical machining center is X, Y, Z three-axis servo control half closed loop, structure and the overall size is compact and reasonable, the spindle adopts servo motor driven. Can be achieved for a variety of a complex parts such as disc, plate, shell,cam, mould, once clamping complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties,medium or small batch production, for complex, high precision parts processing can show its superiority.
2.Structure feature
1)The main foundation parts such as pedestal, sliding seat, table, column, spindle box with high rigid iron structure, reinforcement is distributed internal of the base, sliding seat is box type structure. Ensure the basic pieces of high rigidity and resistance bending vibration performance; The main foundation parts with resin sand molding and after aging treatment, ensure the stability of the precision machine tool use for a long time.
2) The X, Y, Z guideway are all linear guideway, automatic forced lubrication, to achieve the high speed movement of the machine tool;
3)Feeding of X, Y, Z directions adopts ball screw with high accuracy high strength, the speed is high;The drive motor is directly connected with the ball screw through the elastic coupling , feeding servo motor directly transmission of power to the high-precision ball screw, have no back gap, to ensure the positioning accuracy and synchronization of the machine tool;
4)Spindle unit from Taiwan famous brand with high speed, high precision, high rigid, axial and radial capacity is strong, velocity 8000rpm;
5)Spindle with blowing center, high pressure gas immediately clean the inner taper of the spindle after the spindle loosen tool, ensure the clamping accuracy of cutting tool;
6)The guideways and the ball screws of the X, Y, Z three directions enclosed protection ,ensure the cleanness of ball screw and guideway, ensure the transmission and motion precision of machine tools;
7)Adopts high pressure water stampings with automatic spiral chip removal device, automatic remove chip, high efficient, reduce the labor intensity of operators;
8)Adopts fully splash guard structure, safe and reliable;
9)Using Taiwan's high quality high speed automatic change tool magazine with umbrella type 10(standard configuration) or round plate type 16(option ), change tool accurate, time is short, high efficiency, after running test one million times, conform to the requirements of the reliability; tool magazine with damping stucture, can reduce the impact of the movement, ensure the service life of the automatic change tool magazine.
10)USES the reliable centralized automatic lubricating device, automatic intermittent lubrication with timing and quantitative, work stable and reliable;
11)Machine operation system adopts the principle of human body engineering design, convenient to operate;
3. Standard configuration
1)Spindle BT40/8000rpm from Taiwan
2)Siemens 808D CNC system
3)Spindle servo motor 3.7Kw
4)MPG(manual pulse generator)
5)Z axis rigid tapping
6)External cooling system (including chip pans, cooling tank, cooling pump,cooling pipe);
7)Automatic spiral type chip removal device;
8)external air cooling;
9)Umbrella type tools magazine with 12tools.
10)Full metal protection shield and inner ball screws,guideway metal protection shield;
11)Adjust the iron pad;
12)Work lamp;
13) Alarm lamp;
Cnc vertical milling machine center

Model	VMC7126
Main Motor Power KW	3.7kw
Spindle Max. Rotating Speed	6000rpm
T slot	14x3x80
table load	200kg
rapid movement speed X/Y/Z	15/15/15m/min
cutting feed speed X/Y/Z	1-6000mm/min
Spindle Taper	BT40
Worktable Size	800x260
Travel(Longitudinal X/Horizontal Y/Vertical Z)	450x300x400mm
Distance of Spindle Axis to Guideway Plane	360mm
Distance of Spindle End to Worktable	90-520mm
Positioning Accuracy	±0.015mm
Repeated Positioning Accuracy	±0.0075mm
Machine Overall Dimension (L*W*H) mm	2200×1900×2200
Machine Net Weight KG	2400
Magazine Capacity	12
tool weight	8kg
tool change time	6s
External Protection Level	Full Closed
Configuration
system	GSK980 or SIEMENS808
Main motor	3.7kw servo motor
Feeding motor	Sever motor
Spindle	TAIWAN 8000rpm
Leading screw	TAIWAN
tool magazine	TAIWAN 12PCS
Tool magazine	12pcs umbrella type from TAIWAN
3 axis linear guideway	TAIWAN ABBA
Spindle taper	BT40
Spare parts:
name	brand
Spindle bearing	NSK
Leading screw bearing	NSK
Coolant pump	China famous brand
Central lubrication station	China famous brand
Packing list
Name	size

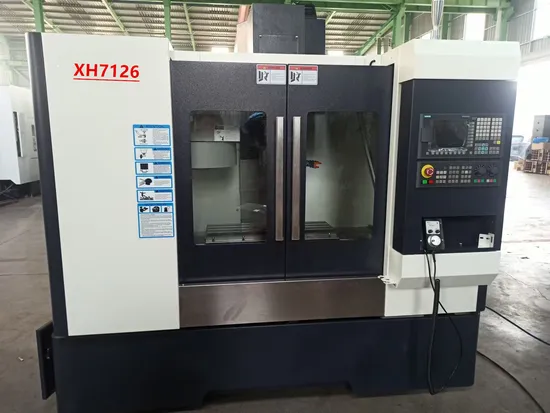

Machine	XH7126
Adjusting screw and sizing block
Internal hexagonal wrench	5,6,8,10
Milling chuck
Dead wrench	S17~19,S22~24
Operation manual

---
